Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-63
REP10.8 FEEDER ASSY-OPT 250 MAIN (PL10.1.20)
[Removal]
1 Remove the TRAY ASSY 250 IOT. (REP10.5)
2 Remove the FEEDER ASSY OPT 250. (REP10.1)
3 Remove the COVER-SIDE L OPT 250 MAT. (REP10.2)
4 Remove the CLUTCH ASSY OPT FEED. (REP10.9)

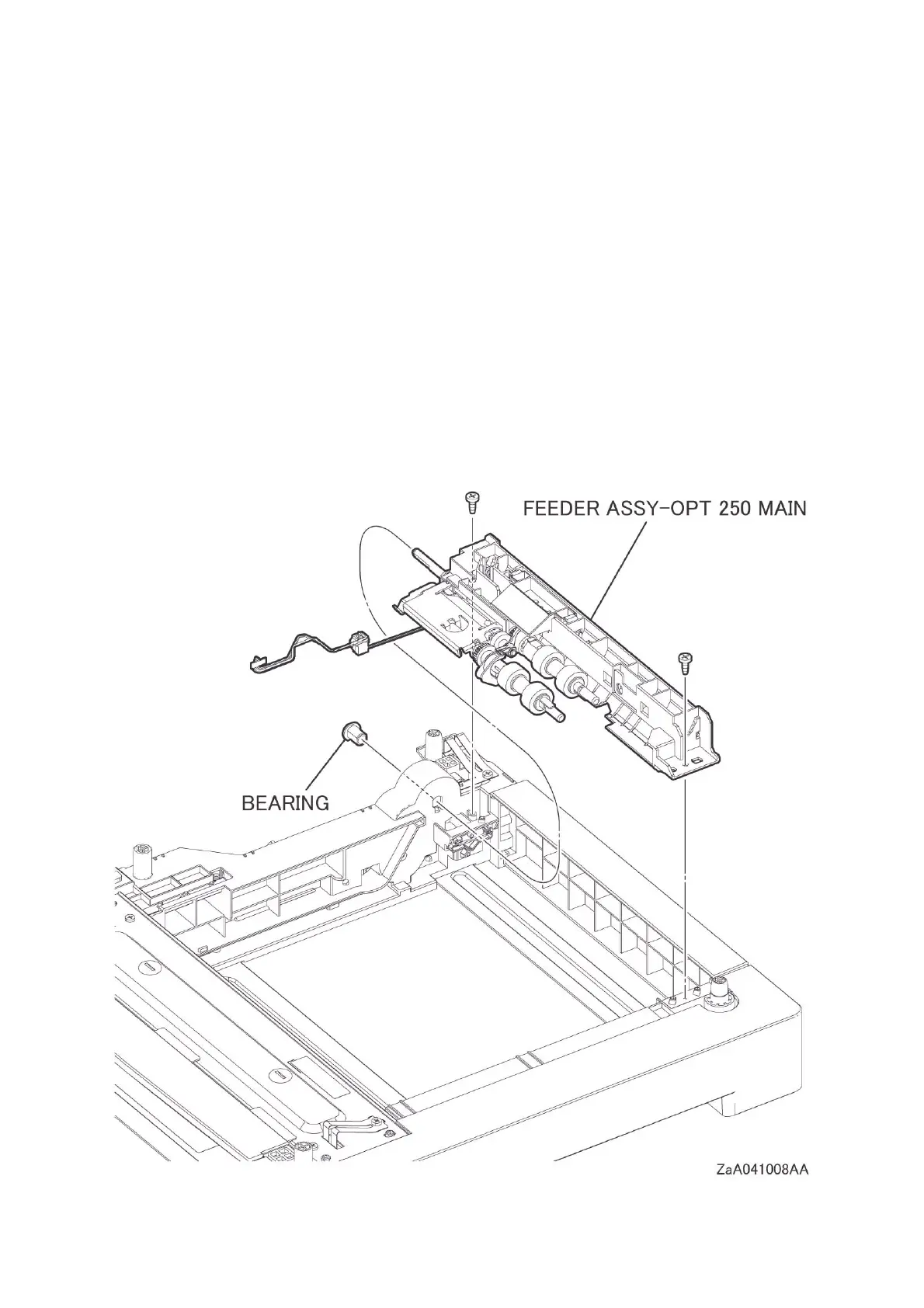

5 Remove the BEARING from the shaft of the FEEDER ASSY-OPT 250 MAIN.
6 Release the harness from the harness guide on the frame.
7 Remove the two screws (silver, tapping, 8mm) that fix the FEEDER ASSY-OPT 250 MAIN, and
then remove the FEEDER ASSY-OPT 250 MAIN.
To Next Page
