Chapter 10 Principle of Operation
10.13 Drive Transmission Route of DADF Motor
10-31
10.13 Drive Transmission Route of DADF Motor
10.13.1 DADF Motor

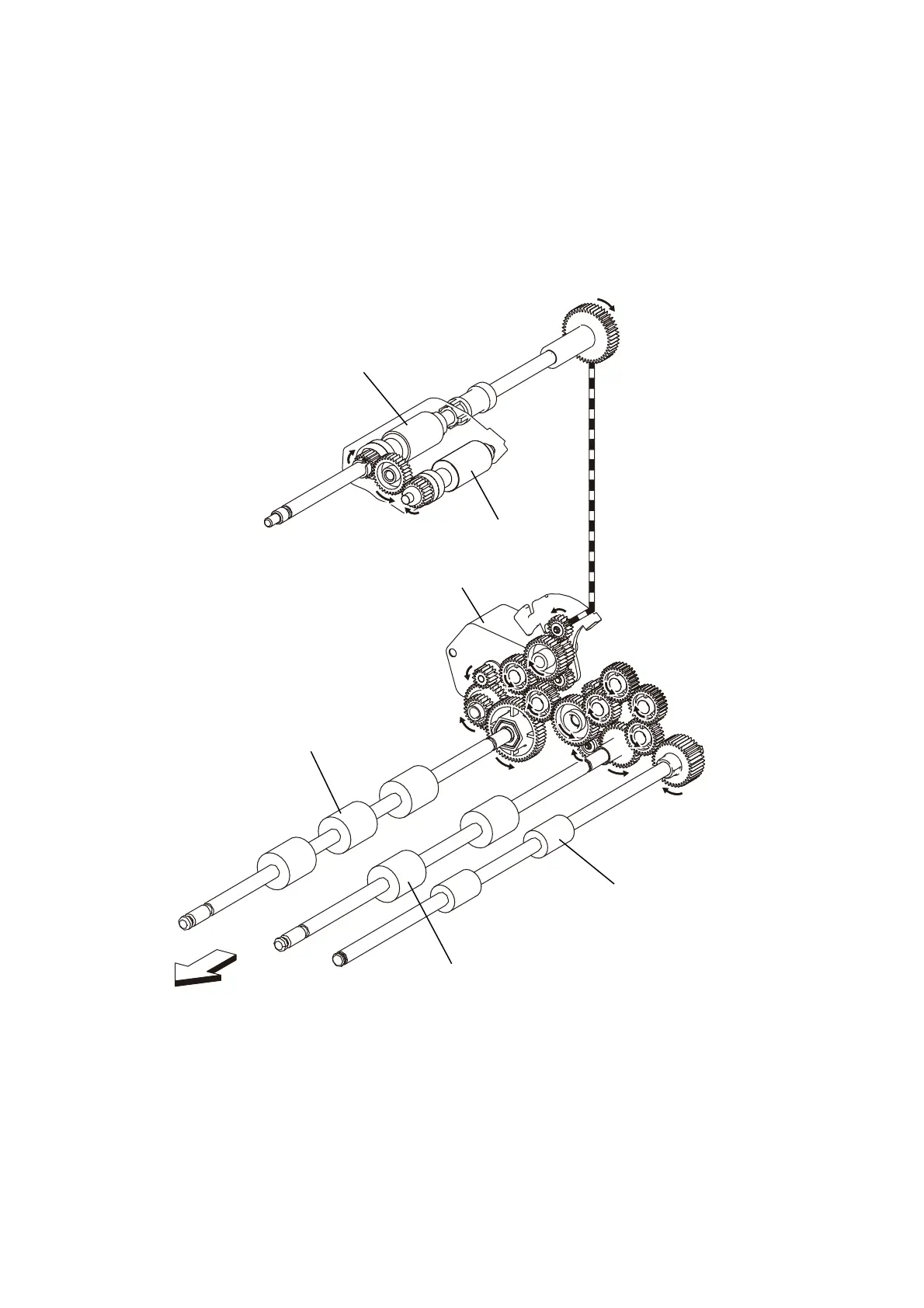

This section describes the drive transmission route from the DADF Motor to each roller.
FRONT
ZaA10008AA
Takeaway Roll
TRANSPORT ROOL
EXIT ROLL
DADF MOTOR
NUDGER ROLL
FEED ROLL
