Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-123
REP19.6 KIT COVER SIDE L AIO ASSY (PL19.1.98)
[Removal]
1 Open the KIT MSI COVER.

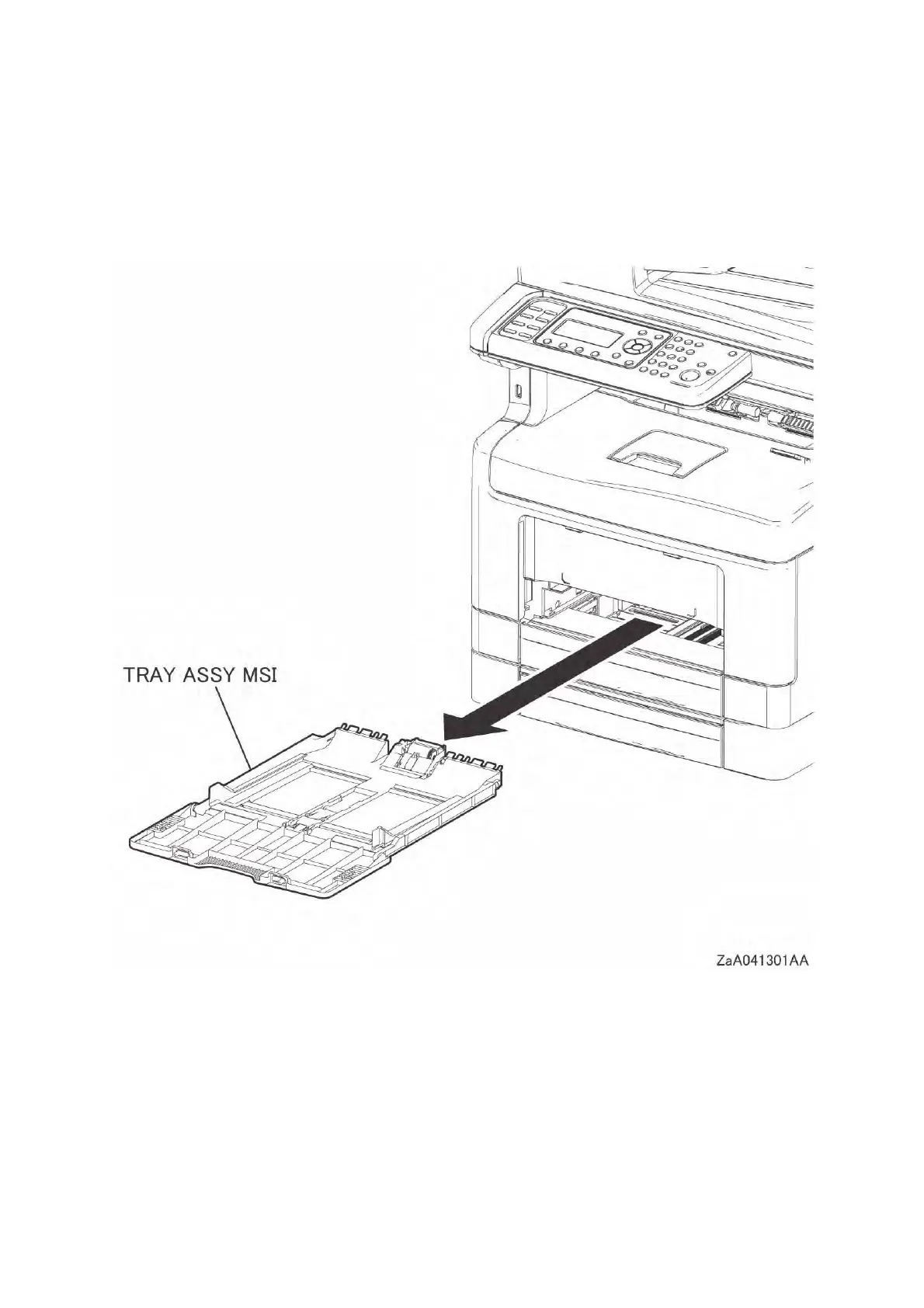

2 Pull the TRAY ASSY MSI out of the printer.
3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)
4 Remove the COVER ASSY WINDOW ESS LOW. (REP19.2)
5 Remove the KIT COVER ASSY REAR AIO. (REP19.7)
