Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-64

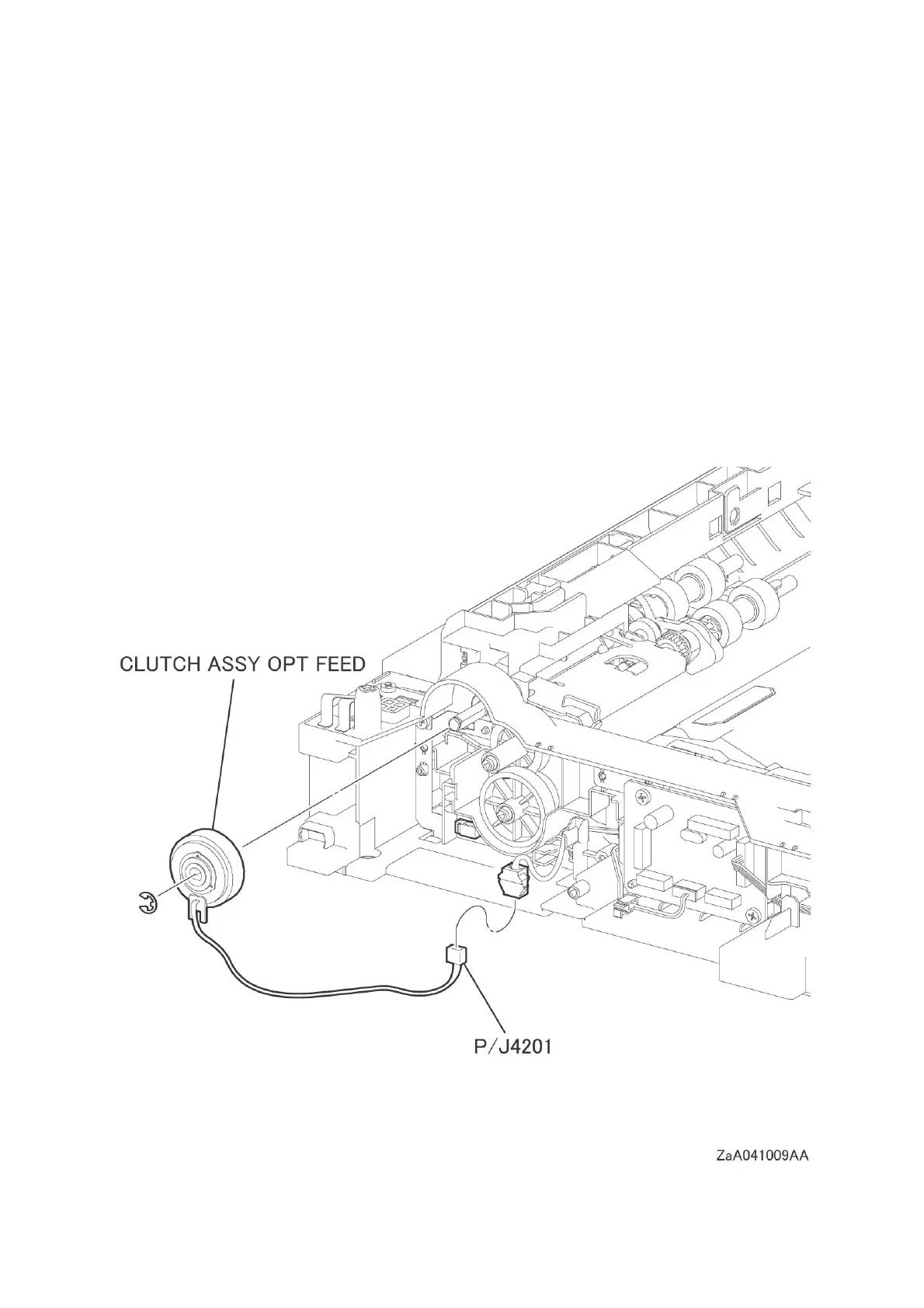

REP10.9 CLUTCH ASSY OPT FEED (PL10.1.8)
[Removal]
1 Remove the TRAY ASSY 250 IOT. (REP10.5)
2 Remove the FEEDER ASSY OPT 250. (REP10.1)
3 Remove the COVER-SIDE L OPT 250 MAT. (REP10.2)
4 Remove the MOTOR-ASSY OPTION. (REP10.7)
5 Release the harness of the CLUTCH ASSY OPT FEED from the clamp, disengage the relay con-
nector (P/J4201), and then release the harness from the harness guide on the frame.
6 Remove the E-RING that fixes the CLUTCH ASSY OPT FEED, and then remove the CLUTCH
ASSY OPT FEED.
To Next Page
