Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-70

REP15 Registration

REP15.1 (SCC) TRANSPORT ASSY-REGI FDR LOW (PL15.1.6)

[Removal]

1 Open the KIT MSI COVER.

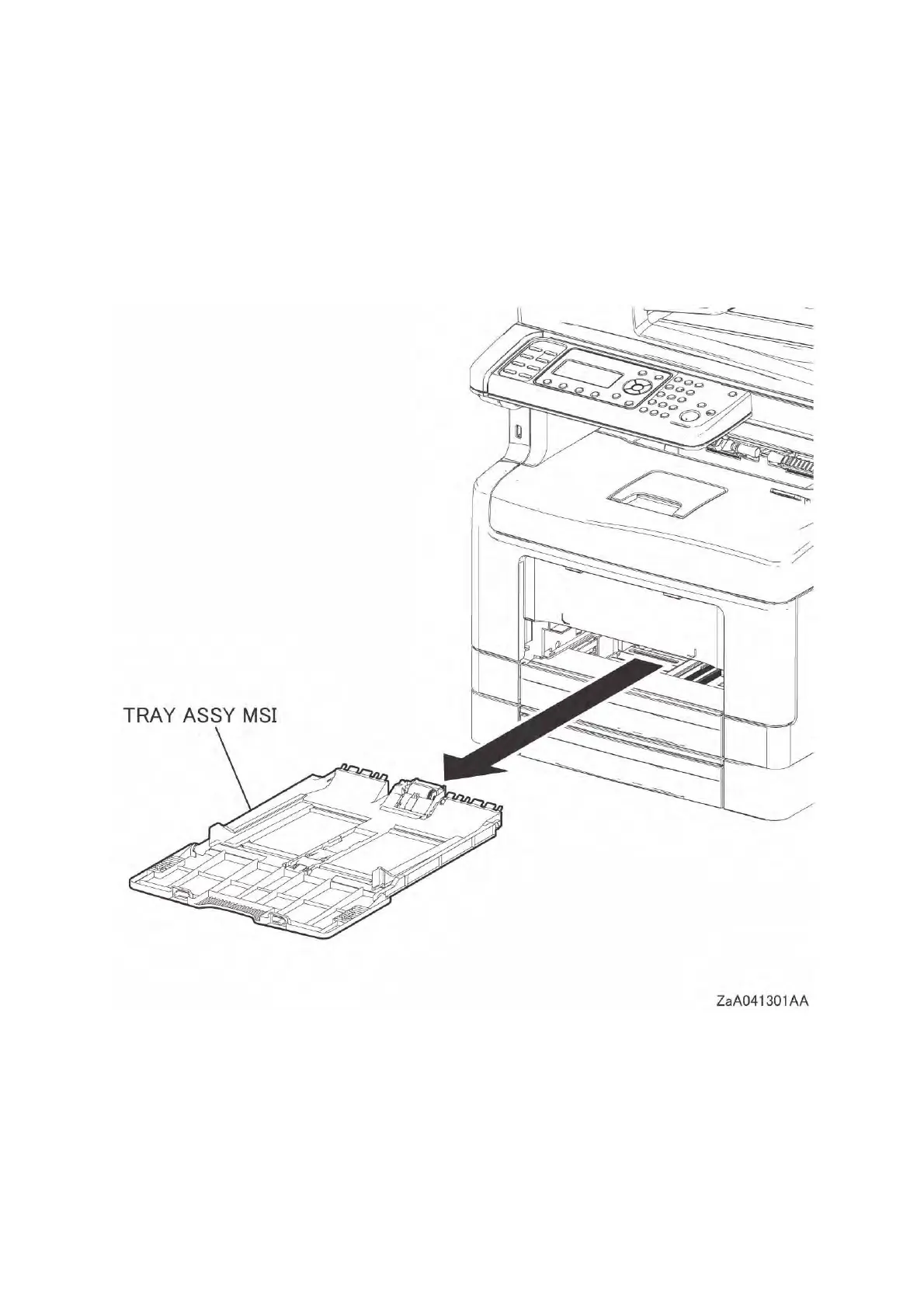

2 Pull the TRAY ASSY MSI out of the printer.

3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)

4 Remove the XERO ASSY. (REP8.1)

5 Remove the COVER ASSY WINDOW ESS LOW. (REP19.2)

6 Remove the KIT COVER ASSY REAR AIO. (REP19.7)

7 Remove the COVER SIDE R AIO. (REP19.4)
