Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-77

REP15.2 INTERLOCK SW ASSY REAR (PL15.1.97)

[Removal]

1 Open the KIT MSI COVER.

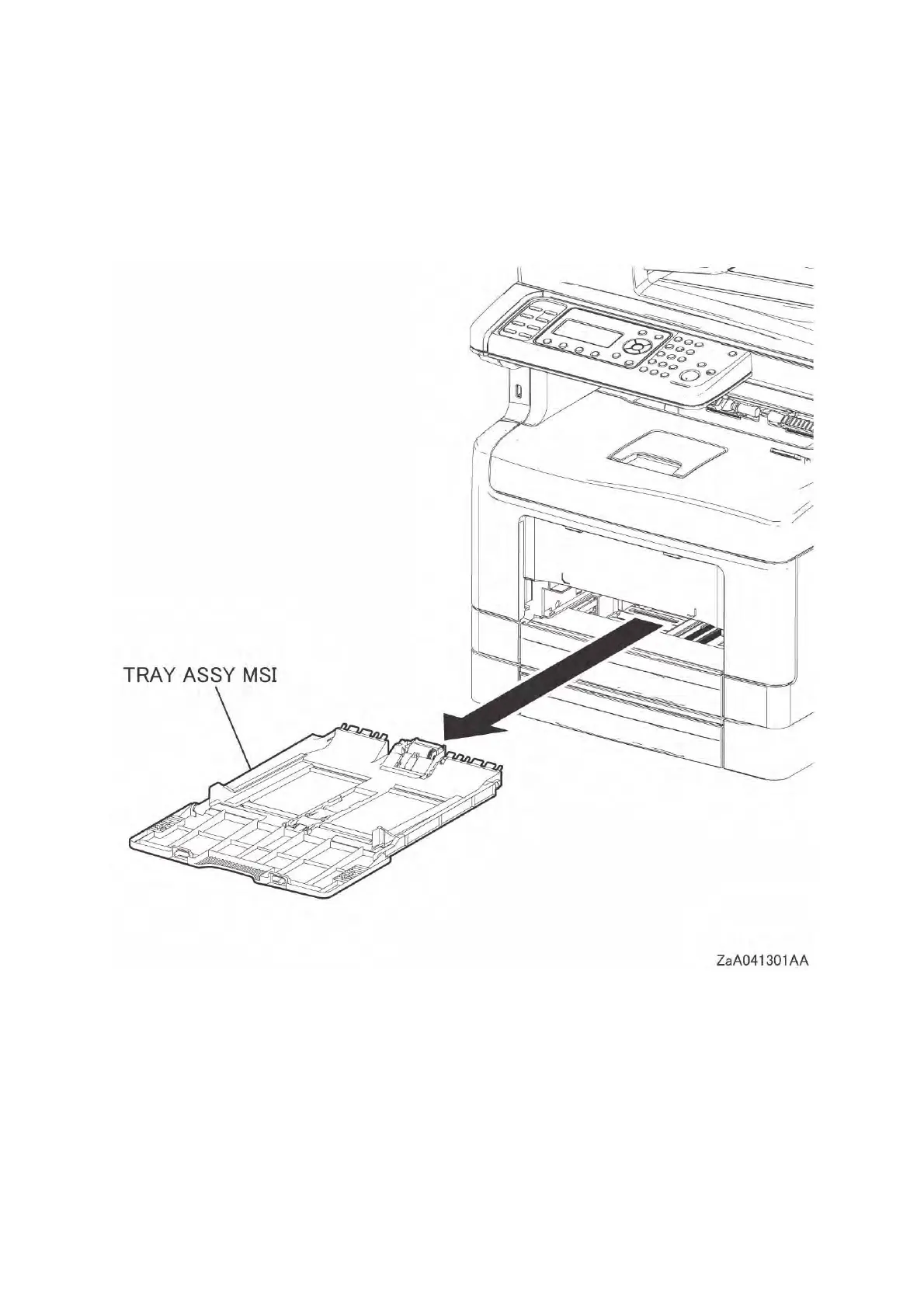

2 Pull the TRAY ASSY MSI out of the printer.

3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)

4 Remove the COVER ASSY WINDOW ESS LOW. (REP19.2)

5 Remove the KIT COVER ASSY REAR AIO. (REP19.7)

6 Remove the KIT COVER SIDE L AIO ASSY. (REP19.6)

7 Remove the PWBA ESS AIO. (REP18.1)

8 Pull the harness out of the hole on the HOUSING ESS.
