Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-53
REP9 Tray
REP9.1 KIT RETARD ASSY ROLL (PL9.1.99)
[Removal]

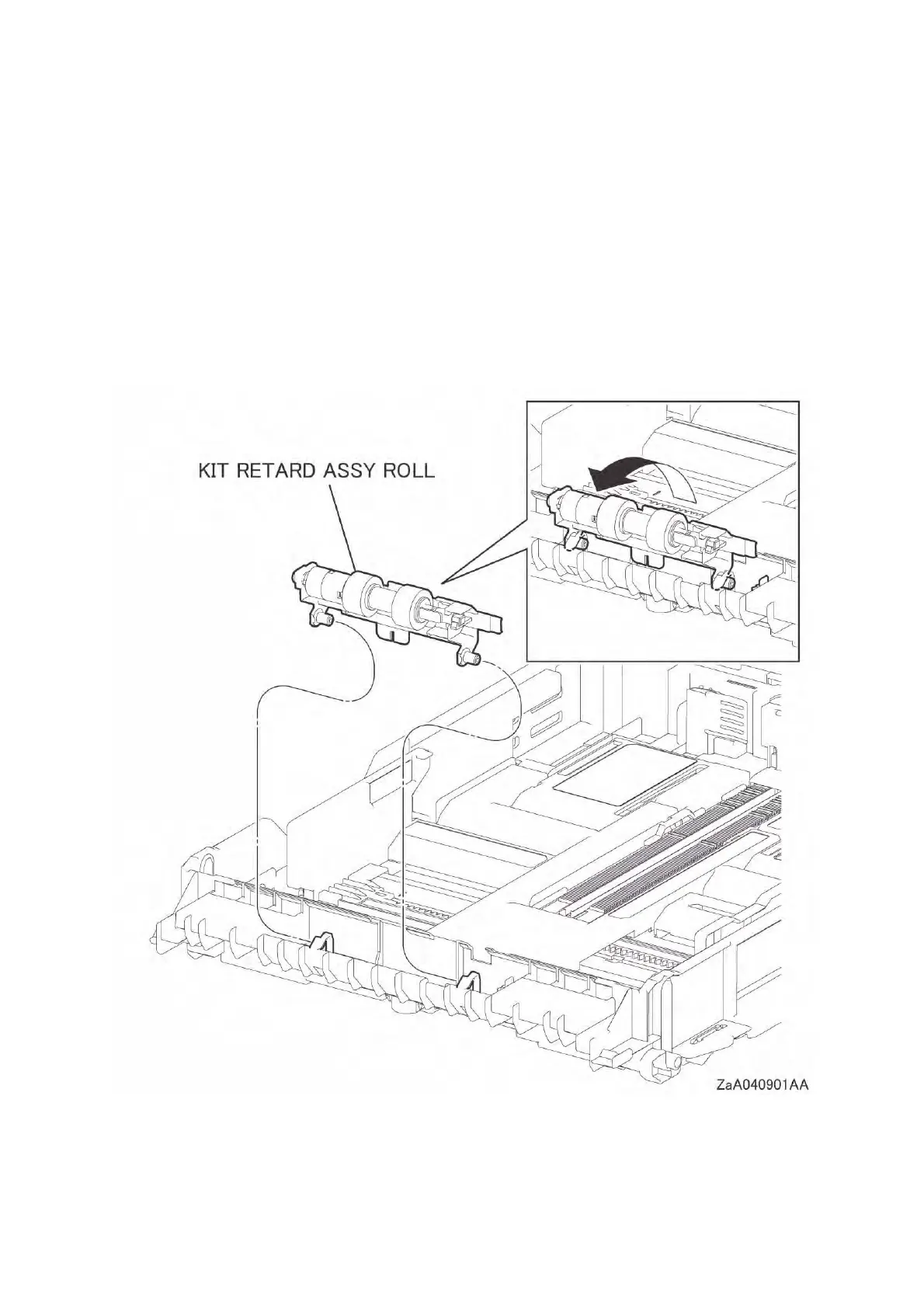

1 Pull the CASSETTE ASSY 250 IOT (PL9.1.1) out of the printer.
2 Release the one hook that fixes the KIT RETARD ASSY ROLL, and then rotate the KIT RETARD
ASSY ROLL in the arrow direction.
3 Release the two bosses on the KIT RETARD ASSY ROLL from the holes on the TRAY, and then
remove the KIT RETARD ASSY ROLL.
