Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-54
REP10 Option Tray
REP10.1 FEEDER ASSY OPT 250 (PL10.1.1)
[Removal]
1 Open the KIT MSI COVER.

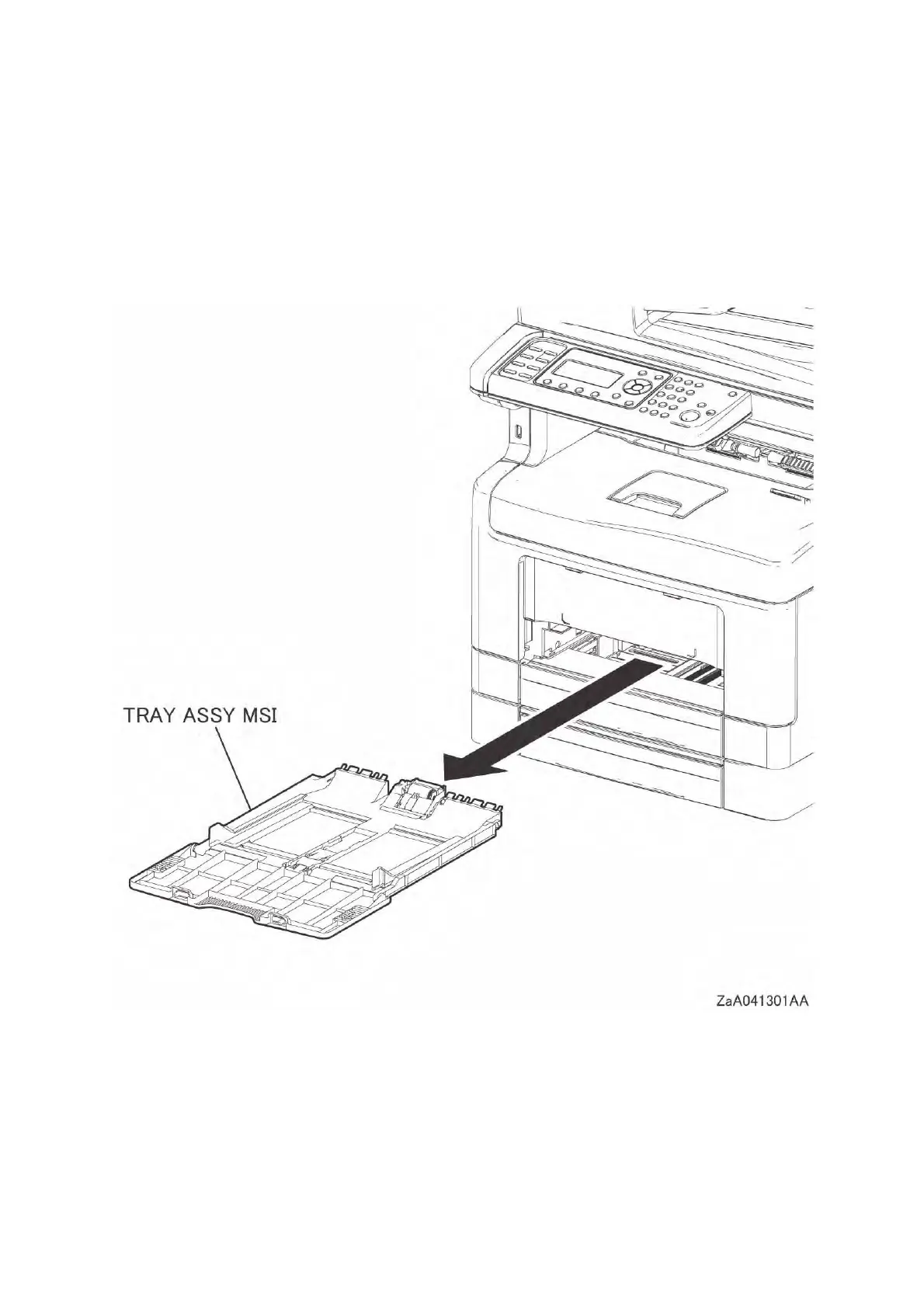

2 Pull the TRAY ASSY MSI out of the printer.
3 Pull the CASSETTE ASSY 250 IOT (PL9.1.1) out of the printer.
4 Remove the TRAY ASSY 250 IOT. (REP10.5)
