Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-55

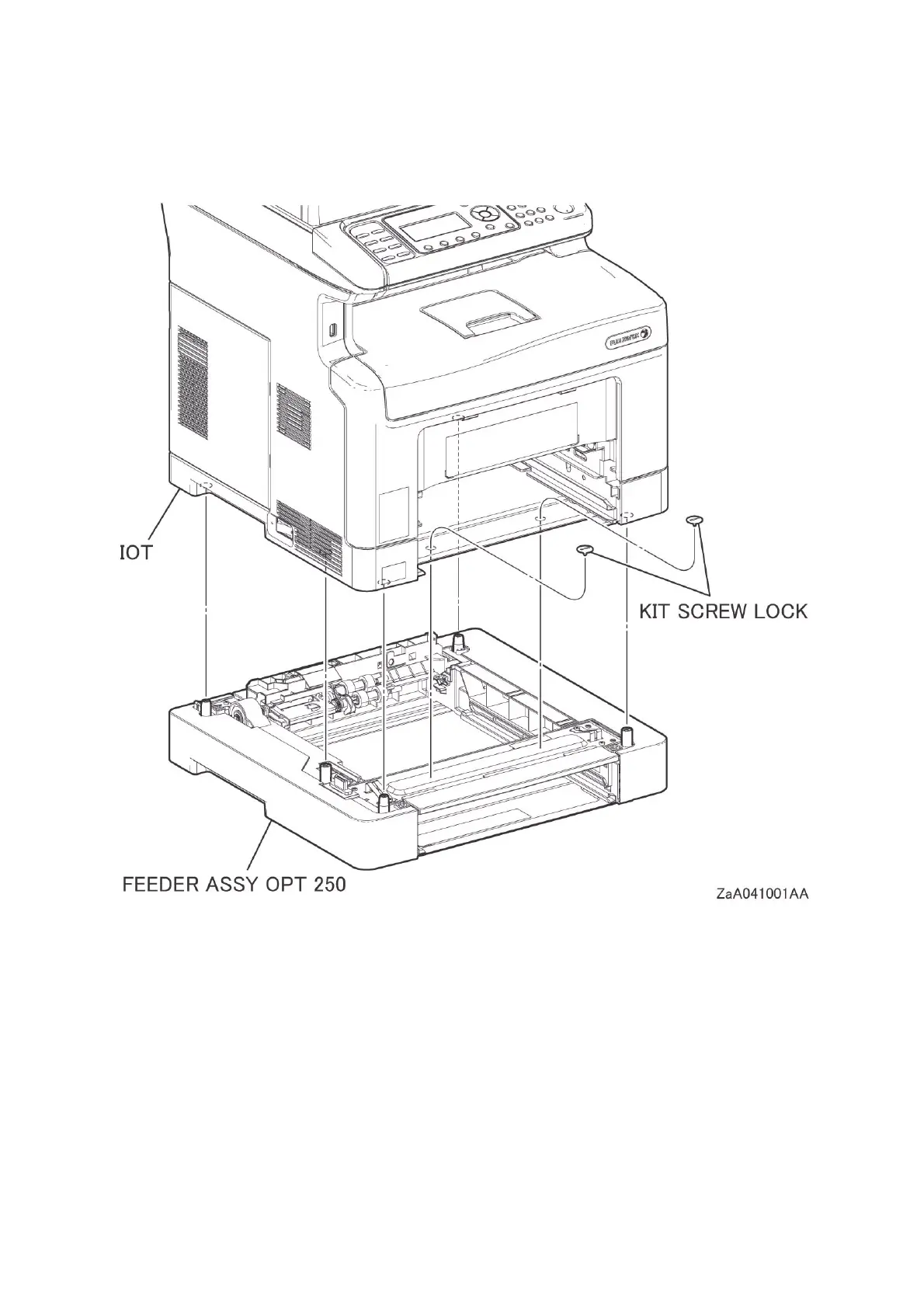

5 Release the two KIT SCREW LOCKs (PL10.11.98) that fix the FEEDER ASSY OPT 250.
6 Release the five bosses on the FEEDER ASSY OPT 250 from the holes on the IOT, and then
separate the IOT upward from the FEEDER ASSY OPT 250.

Fuji Xerox DocuPrint M355df Specifications

General

Brand	Fuji Xerox
Model	DocuPrint M355df
Category	Printer
Language	English
