Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-109

REP18.5 PWB ASSY FRONT-USB (PL18.1.11)

NOTE

Always wear a wrist band during servicing the PWB for protect from the damage by the static electricity.

[Removal]

1 Open the KIT MSI COVER.

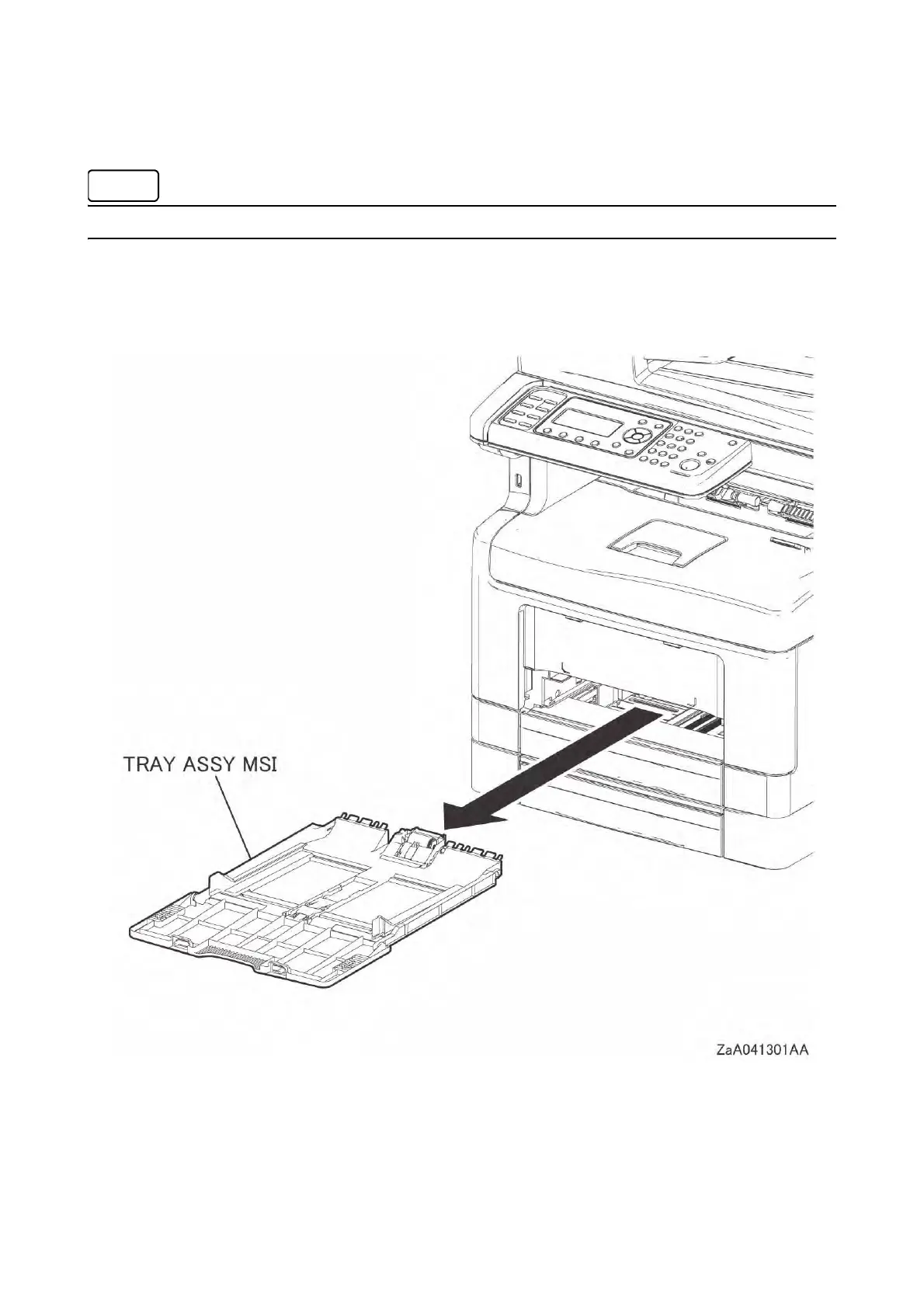

2 Pull the TRAY ASSY MSI out of the printer.

3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)

4 Remove the KIT COVER ASSY REAR AIO. (REP19.7)

5 Remove the KIT COVER SIDE L AIO ASSY. (REP19.6)
