Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-108

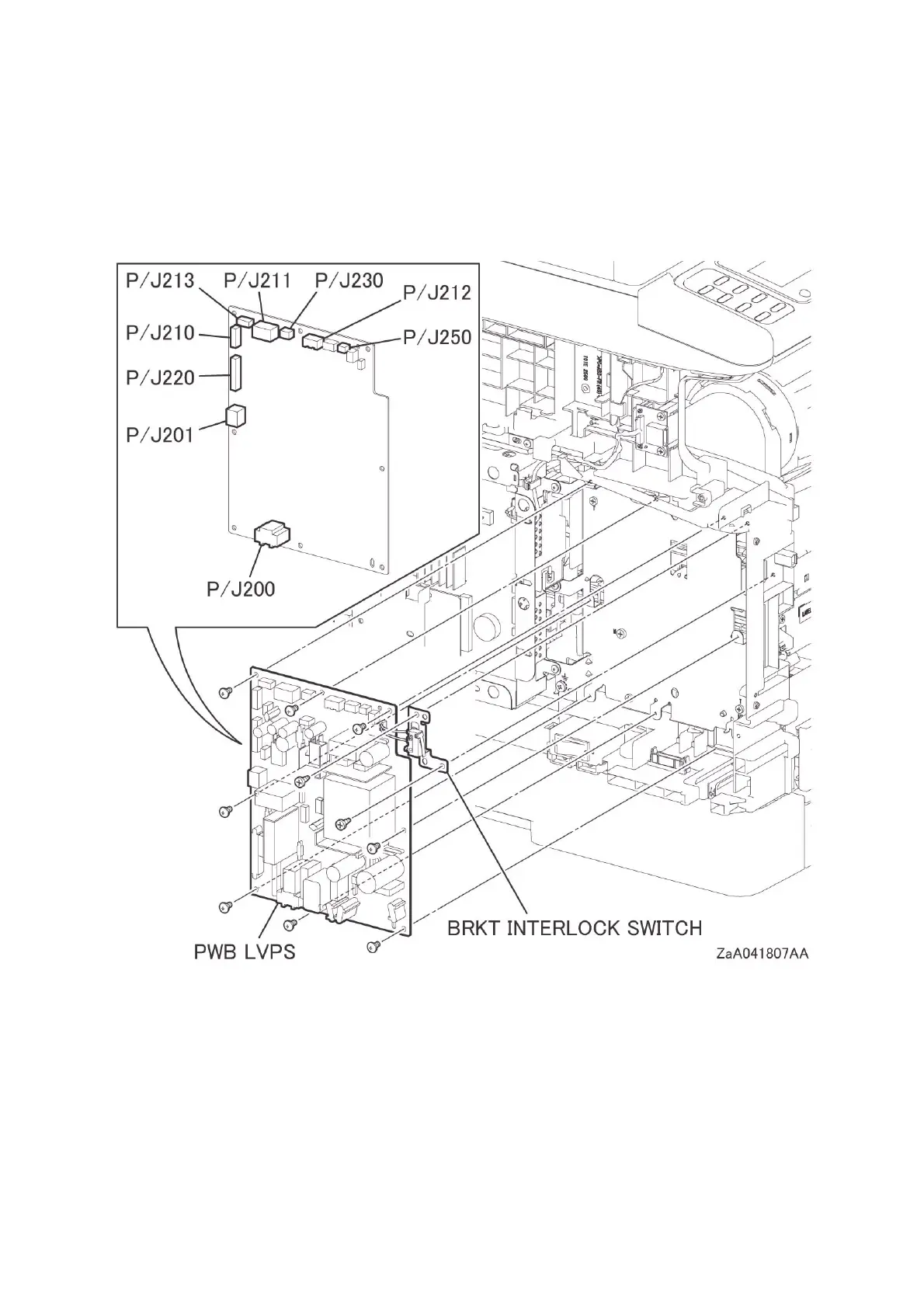

7 Disengage all connectors from the PWB LVPS.
8 Remove the eight screws (silver, M3, 6mm) that fix the PWB LVPS, and then remove the PWB
LVPS.
9 Remove the two screws (silver, tapping, 8mm) that fix the BLACKET INTERLOCK SWITCH to
the printer, and then remove the PWB BRKT INTERLOCK SWITCH(PL18.1.13).
To Next Page
