Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-110

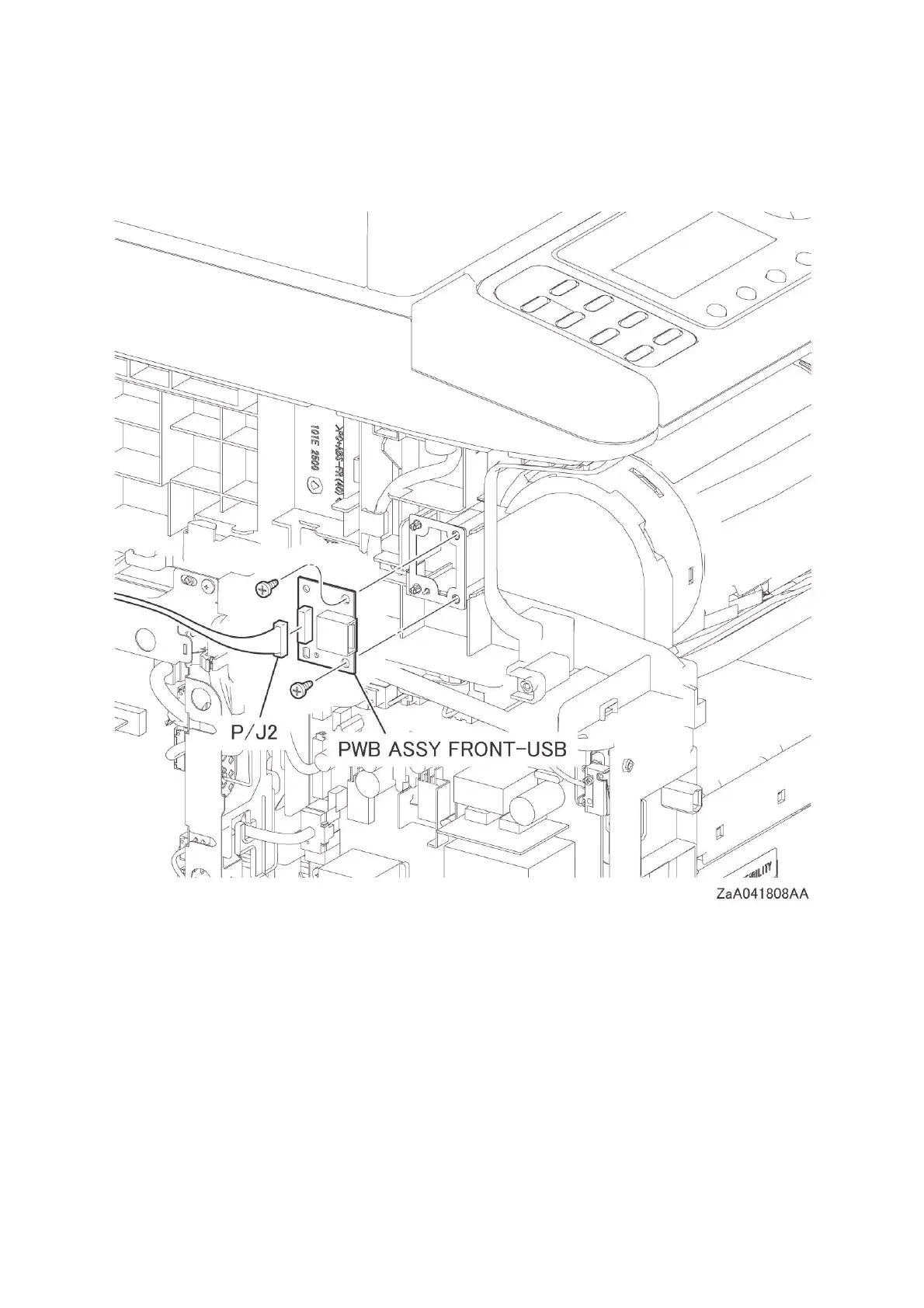

6 Disengage the connector (P/J2) from the PWB ASSY FRONT-USB.
7 Remove the two screws (silver, tapping, 8mm) that fix the PWB ASSY FRONT-USB, and then
remove the PWB ASSY FRONT-USB.
To Next Page
