Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-116

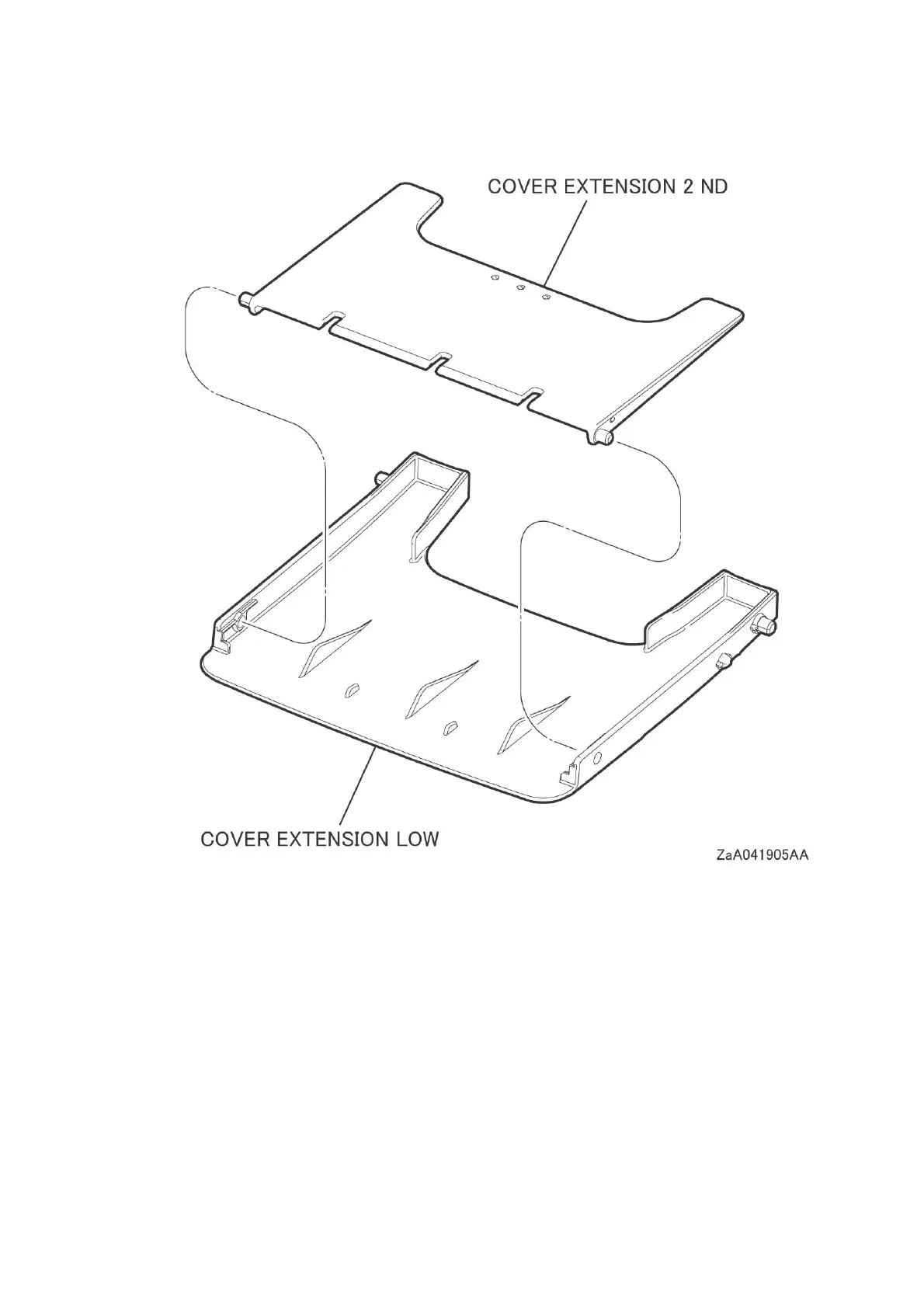

2 Remove the COVER EXTENSION 2ND from the COVER EXTENSION LOW by flexing the
COVER EXTENSION 2ND to release one of the bosses from the hole.
