Fuji Xerox DocuPrint M355df

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-115
REP19.3 COVER EXTENSION LOW (PL19.1.15), COVER EXTENSION 2
ND (PL19.1.16)
[Removal]

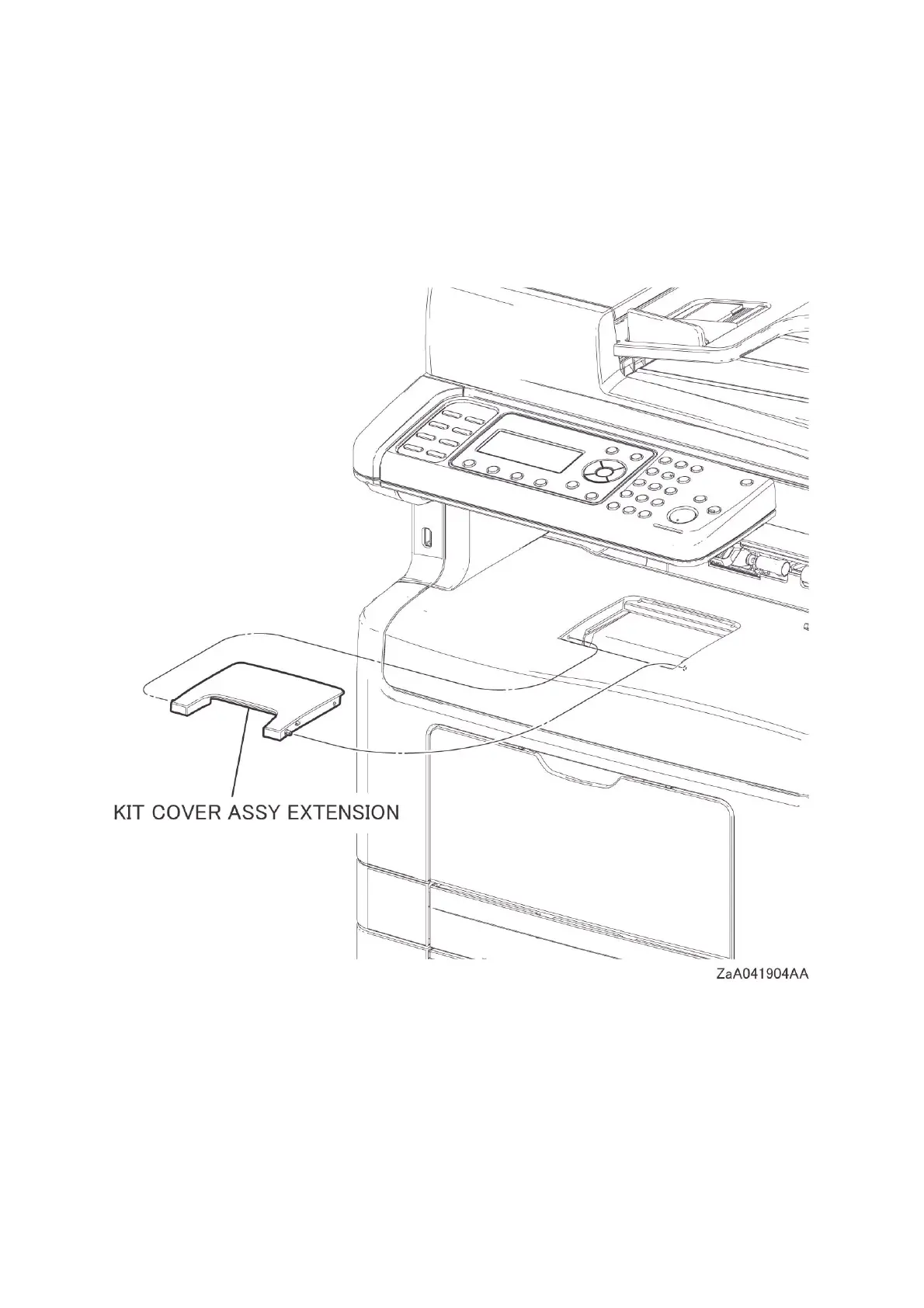

1 Remove the KIT COVER ASSY EXTENSION (PL19.1.95) by flexing it to release one of the
bosses from the hole.
