Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-135
9 Remove the DADF ASSY /IIT ASSY. (REP21.1)
10 Turn the DADF ASSY upside down.

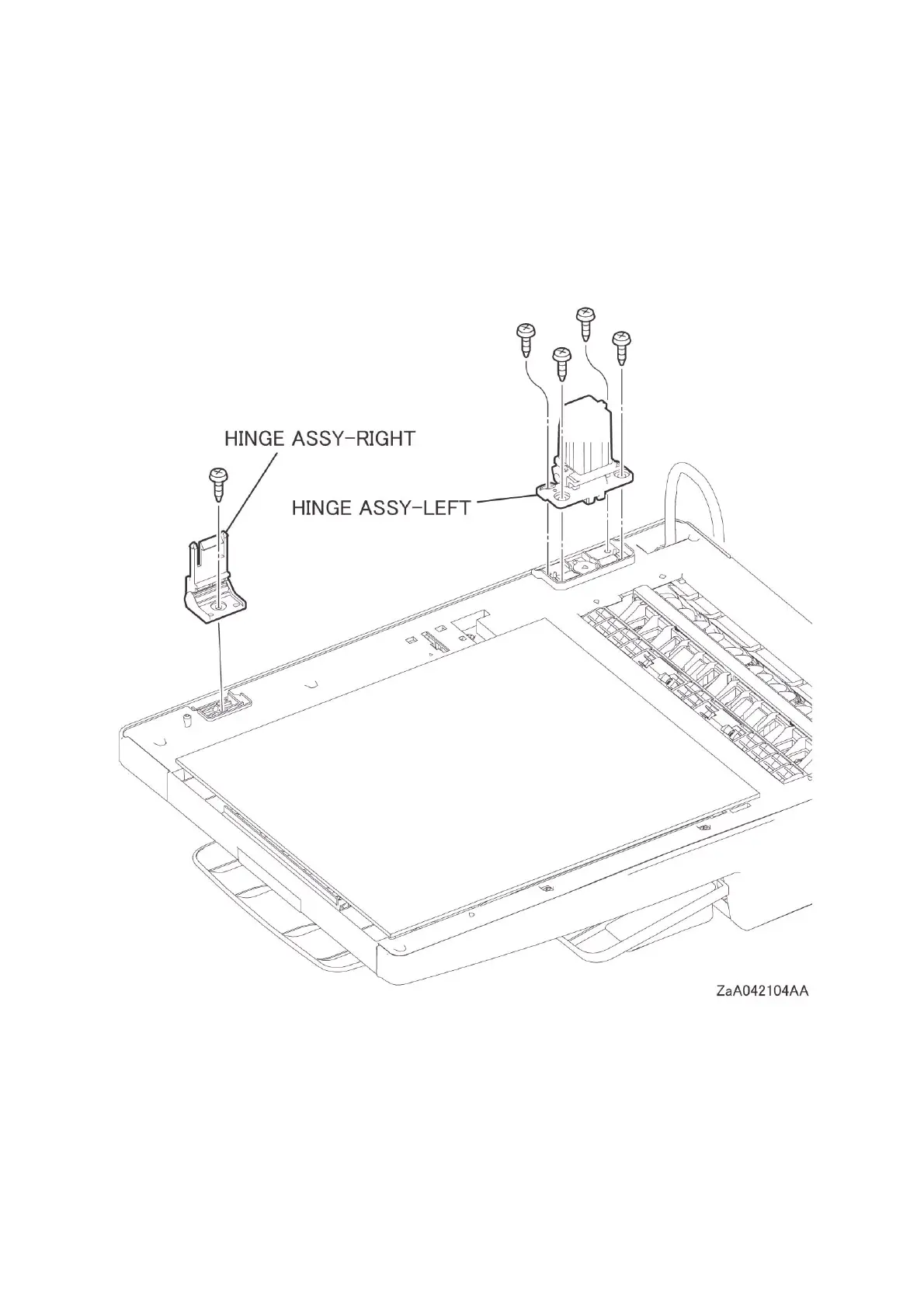

11 Remove the four screws (silver, tapping, 8mm) that fix the HINGE ASSY-LEFT, and then remove
the HINGE ASSY-LEFT.
12 Remove the one screw (silver, tapping, 8mm) that fixes the HINGE ASSY-RIGHT, and then
remove the HINGE ASSY-RIGHT.
