Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-16
7 Remove the PWBA ESS AIO. (REP18.1)
8 Remove the FUSING UNIT (110 / 220 IBG). (REP7.1)

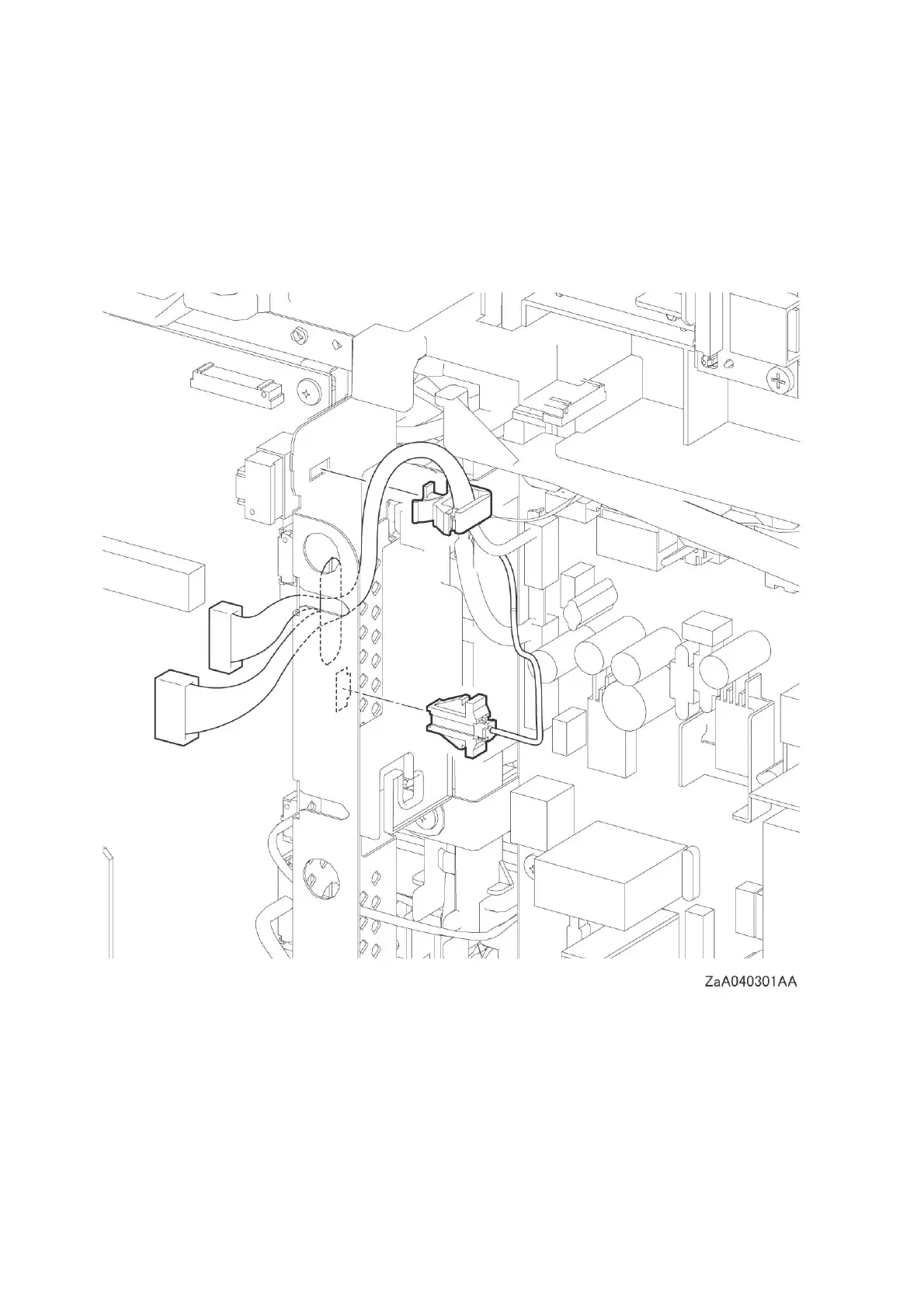

9 Pull the harness out of the hole on the HOUSING ESS.
10 Disengage the relay connector from the HOUSING ESS.
11 Remove the harness clamp from the HOUSING ESS.
