Fuji Xerox DocuPrint M355df

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-26
[Replacement]
NOTE

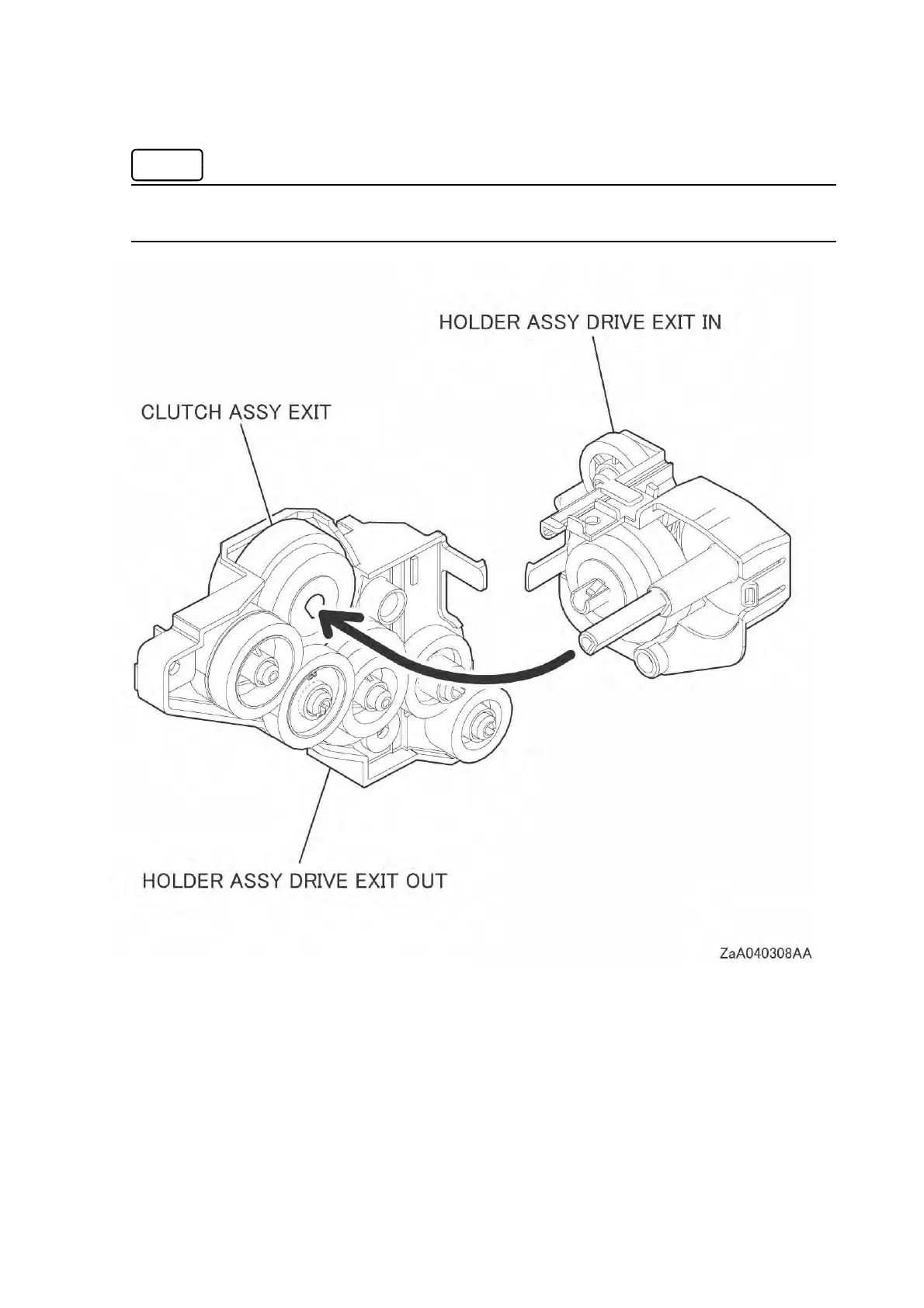

When installing the HOLDER ASSY DRIVE EXIT OUT, fit the D-shaped shaft of the HOLDER ASSY
DRIVE EXIT IN with the D-shaped hole of the CLUTCH ASSY EXIT.
