Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-29
8 Remove the COVER ASSY TOP AIO LOW. (REP19.5)
9 Remove the XERO ASSY. (REP8.1)
10 Remove the PWBA ESS AIO. (REP18.1)

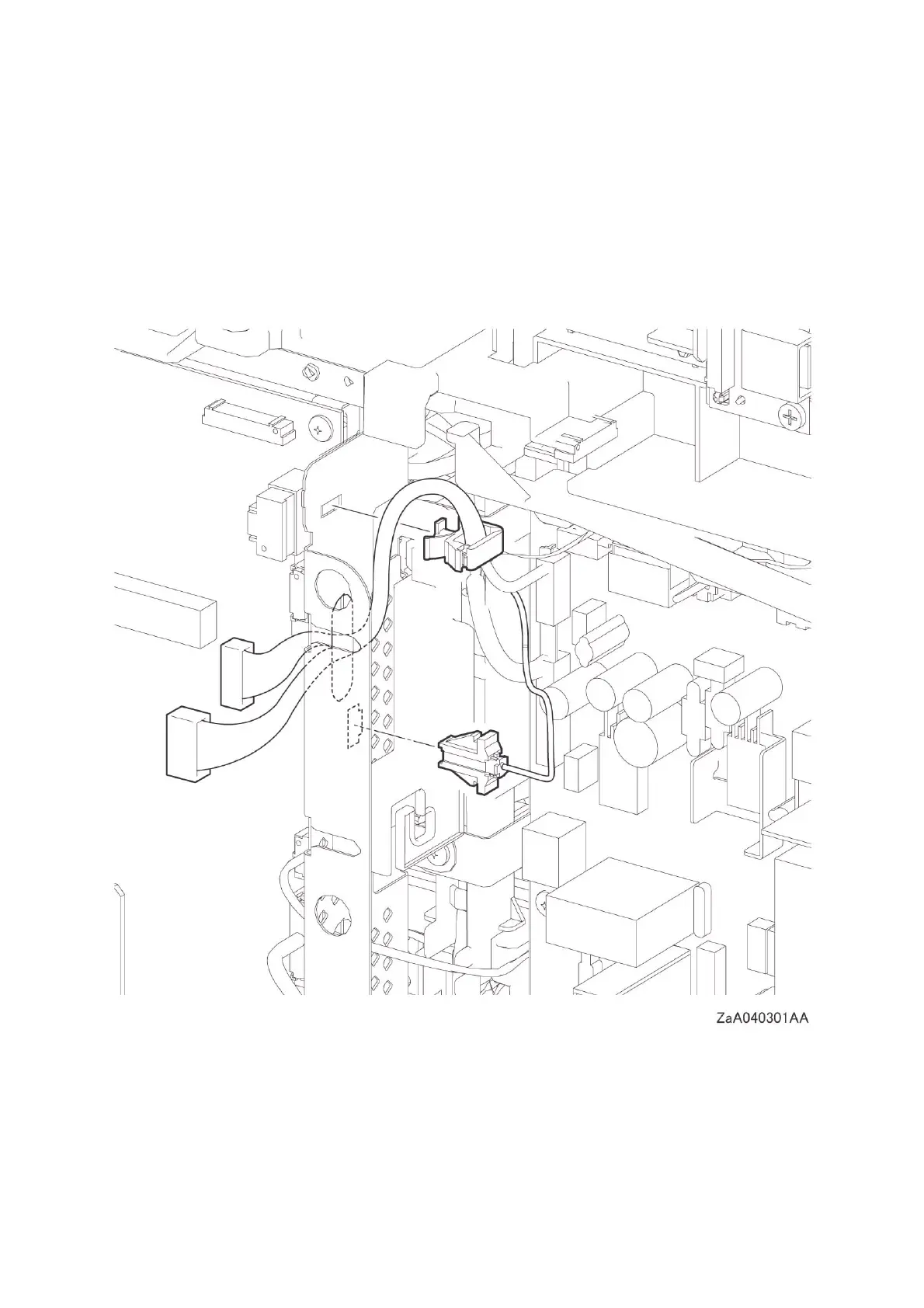

11 Pull the harness out of the hole on the HOUSING ESS.
12 Disengage the relay connector from the HOUSING ESS.
13 Remove the harness clamp from the HOUSING ESS.
