Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-33

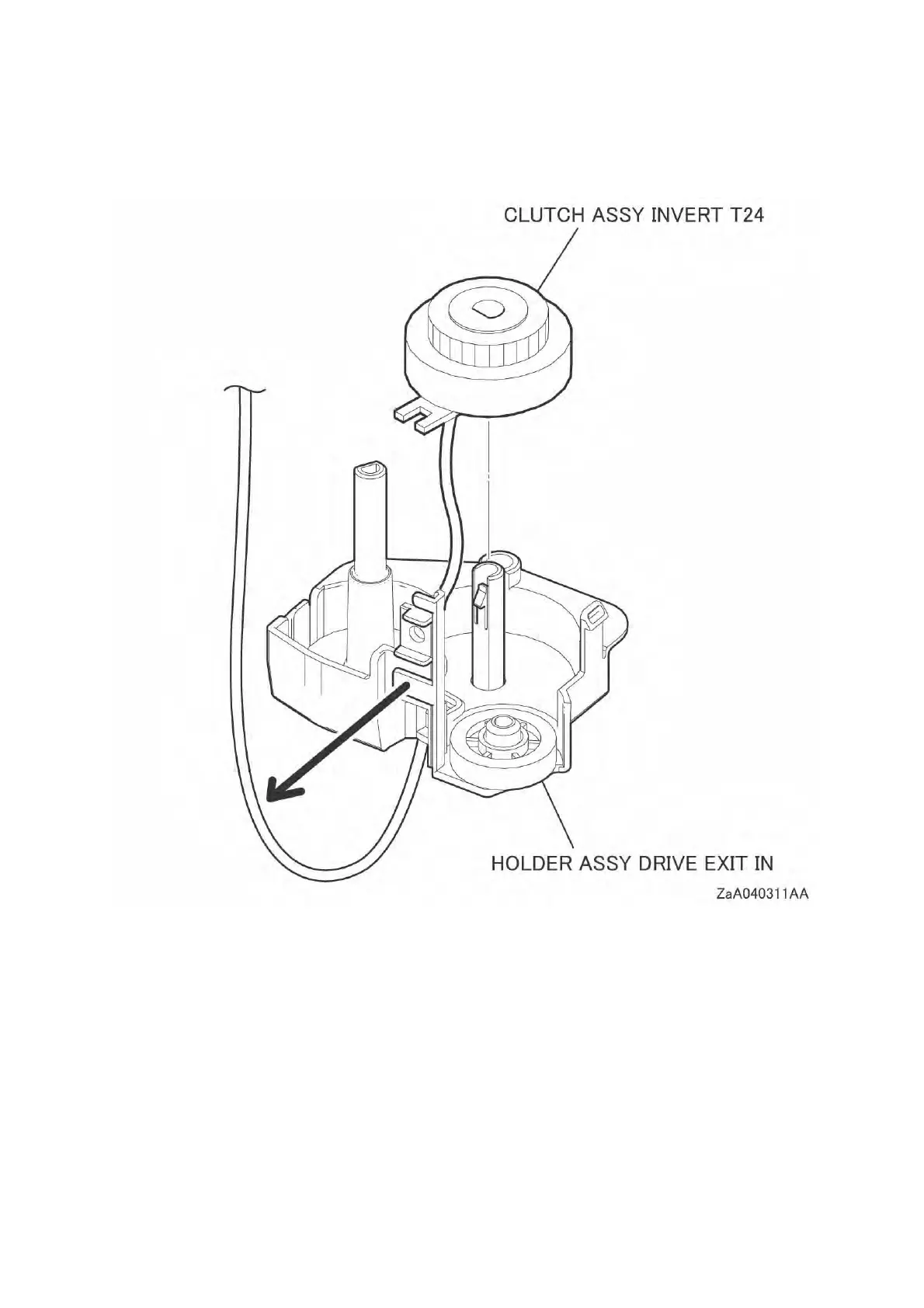

18 Release the harness from the harness guide installed on the HOLDER ASSY DRIVE EXIT IN.

19 Release the hook on the shaft of the GEAR E5, and then remove the CLUTCH ASSY INVERT

T24.
