Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-46

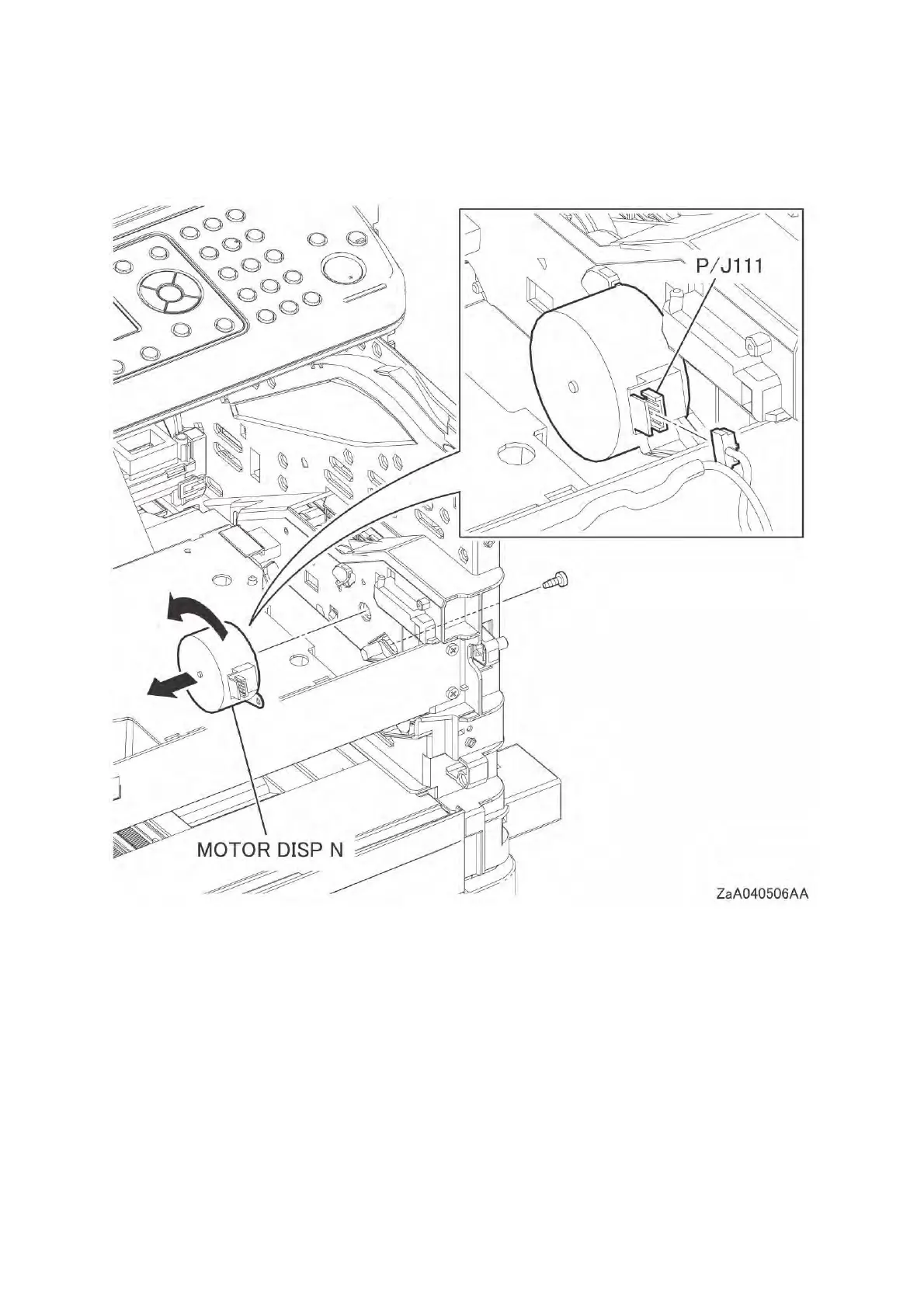

11 Disengage the connector (P/J111) of the harness connected to the MOTOR DISP N.

12 Remove the one screw (silver, tapping, 8mm) that fixes the MOTOR DISP N, rotate the MOTOR

DISP N counterclockwise, and remove it toward you.
