Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-85
14 Remove the TRANSPORT ASSY-REGI FDR LOW. (REP15.1)
15 Remove the KIT ROLL ASSY FEED. (REP15.3)

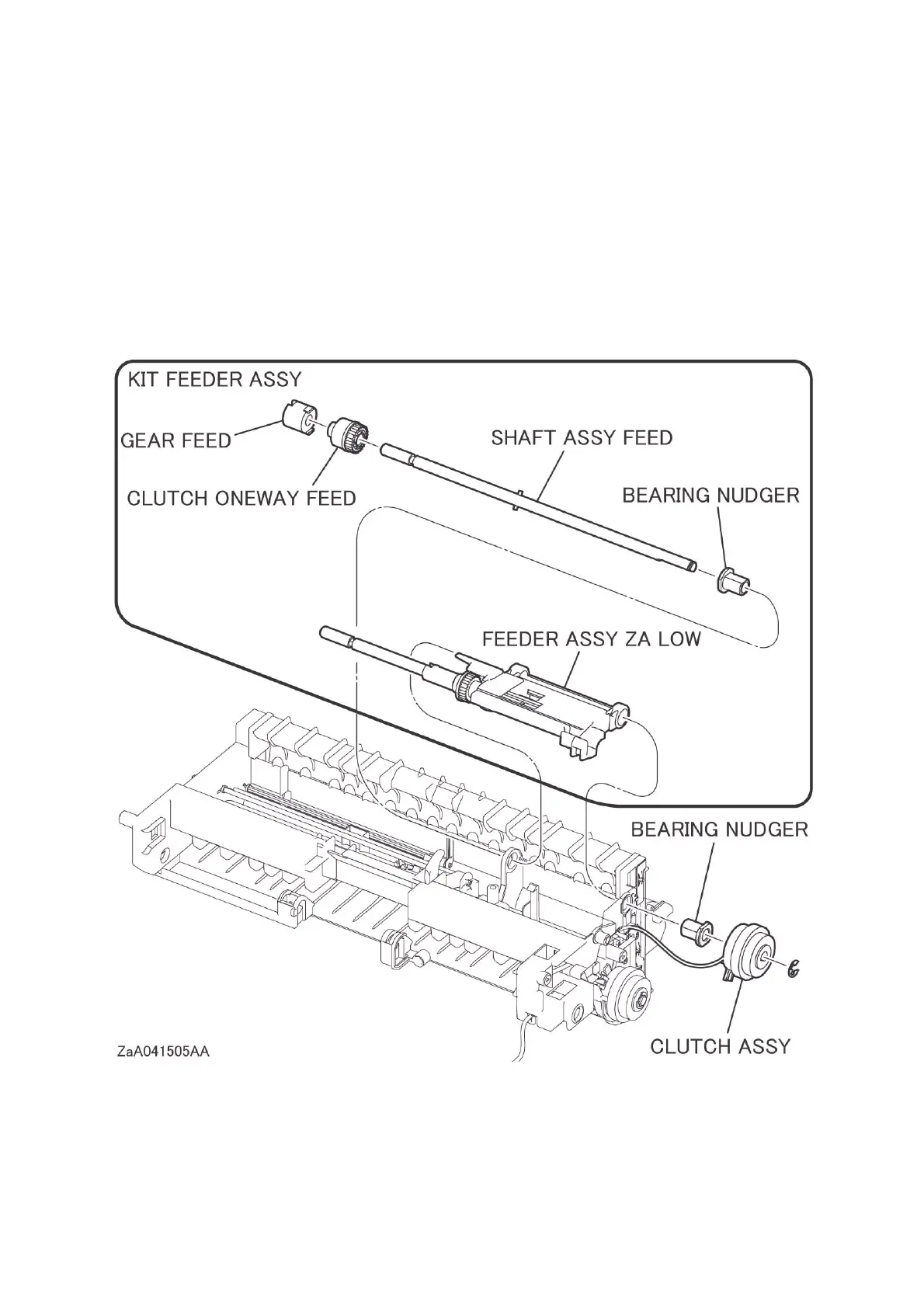

16 Turn the TRANSPORT ASSY ?REGI FDR LOW upside down, remove the E-RING that fixes the
CLUTCH ASSY (PL15.1.16), and then remove the CLUTCH ASSY (PL15.1.16) and BEARING
NUDGER (PL15.1.17).
17 Remove the GEAR FEED (PL15.1.19), CLUTCH ONEWAY FEED (PL15.1.20), SHAFT ASSY
FEED (PL15.1.28), and BEARING NUDGER (PL15.1.17).
18 Remove the FEEDER ASSY ZA LOW.
To Next Page
