Fuji Xerox DocuPrint M355df

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-113

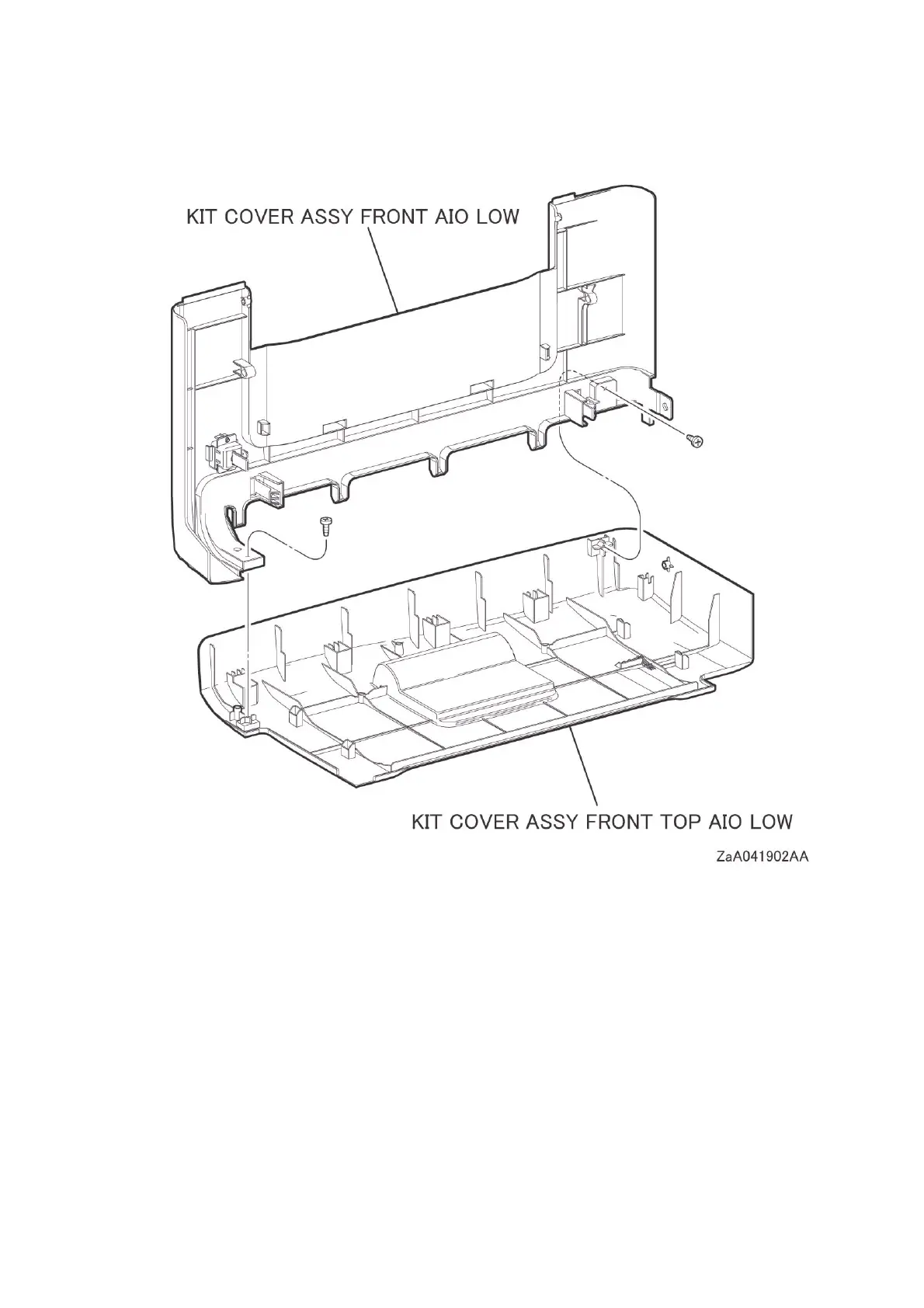

6 Remove the two screws (silver, tapping, 8mm) that fix the KIT COVER ASSY FRONT AIO LOW,
and then remove the KIT COVER ASSY FRONT AIO LOW by releasing the two bosses.
