Chapter 10 Principle of Operation
10.11 Functions of Major Functional Components
10-27
z Pinch Roll Assy
The Pinch Roll Assy is normally pressed against the direction of the Takeaway Roll by the spring
pressure.
Documents are fed through between the Pinch Rolls and the Takeaway Roll to the CVT Window by
the rotation of the Takeaway Roll.
If a jam occurs between the Pinch Roll Assy and the Takeaway Roll, it is hard to retrieve documents
due to the high spring pressure of Pinch Roll Assy.
In order to retrieve jammed documents, open the Cover Assy DADF to release the spring pressure,
and make enough clearance between the Pinch Rolls and the Takeaway Roll.

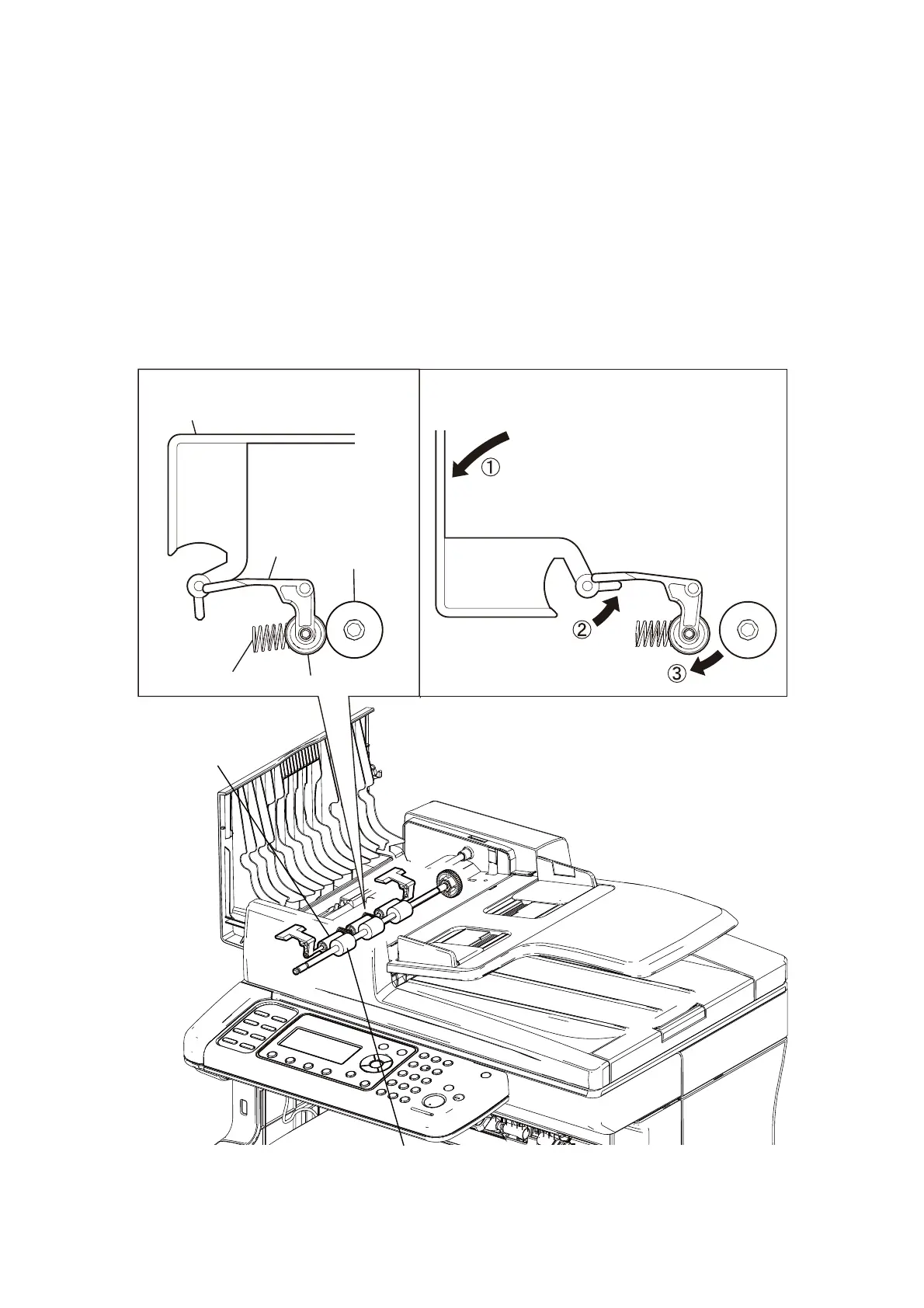

[ Open COVER TOP DADF ASSY ][ Close COVER TOP ADF ASSY ]
Takeaway Roll
Link
Spring
COVER TOP DADF ASSY
Pinch Roll
Takeaway Roll
Pinch Roll Assy
ZaA10005AA
