100 Upgrade and Maintenance Manual TX2550 M4
Basic hardware procedures
4.12.4 Accessible drive covers
4.12.4.1 Removing accessible drive covers

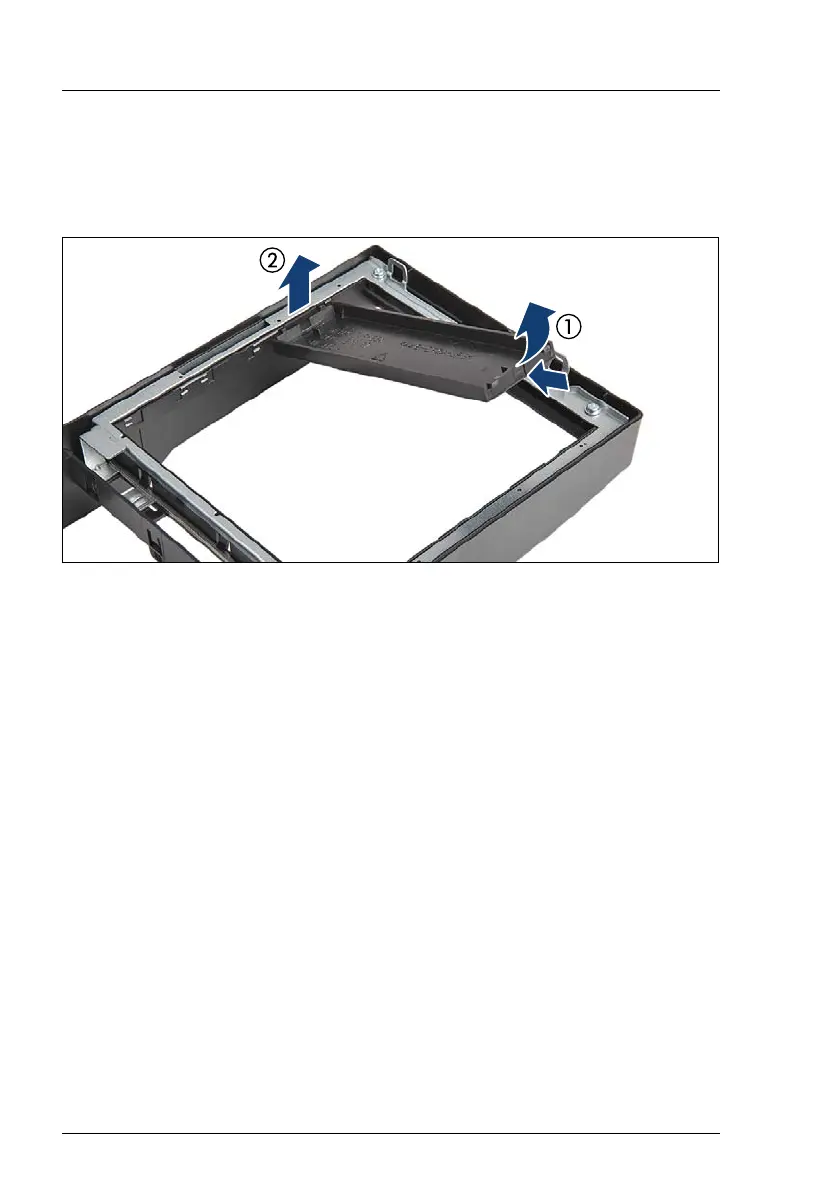

Figure 55: Removing accessible drive covers
I Removing accessible drive covers is illustrated by the example of the
floorstand model. In case of the rack front cover, the procedure is
identical.
Ê Turn the front cover face down.
Ê Press in on the lugs on either side of the drive cover.
Ê Fold up (1) and remove the accessible drive cover (2).
