Fujitsu PRIMERGY TX2550 M4 - Installing the Expansion Card

TX2550 M4 Upgrade and Maintenance Manual 323
Expansion cards and backup units
9.6.1.2 Installing the expansion card

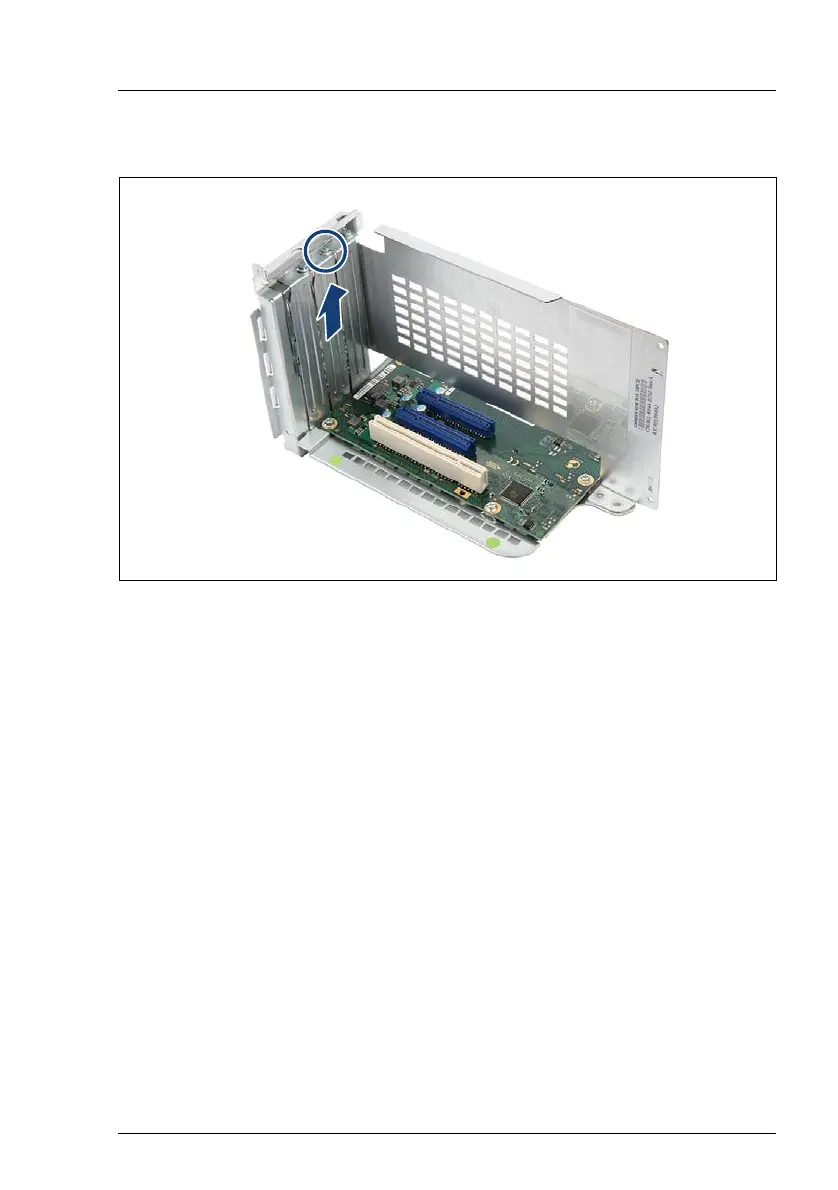

Figure 225: Removing the slot cover from the riser module
Ê Remove the screw from the desired slot cover (see circle).
Ê Remove the slot cover (see arrow).
