TX2550 M4 Upgrade and Maintenance Manual 259
Hard disk drive (HDD) / solid state drive (SSD)

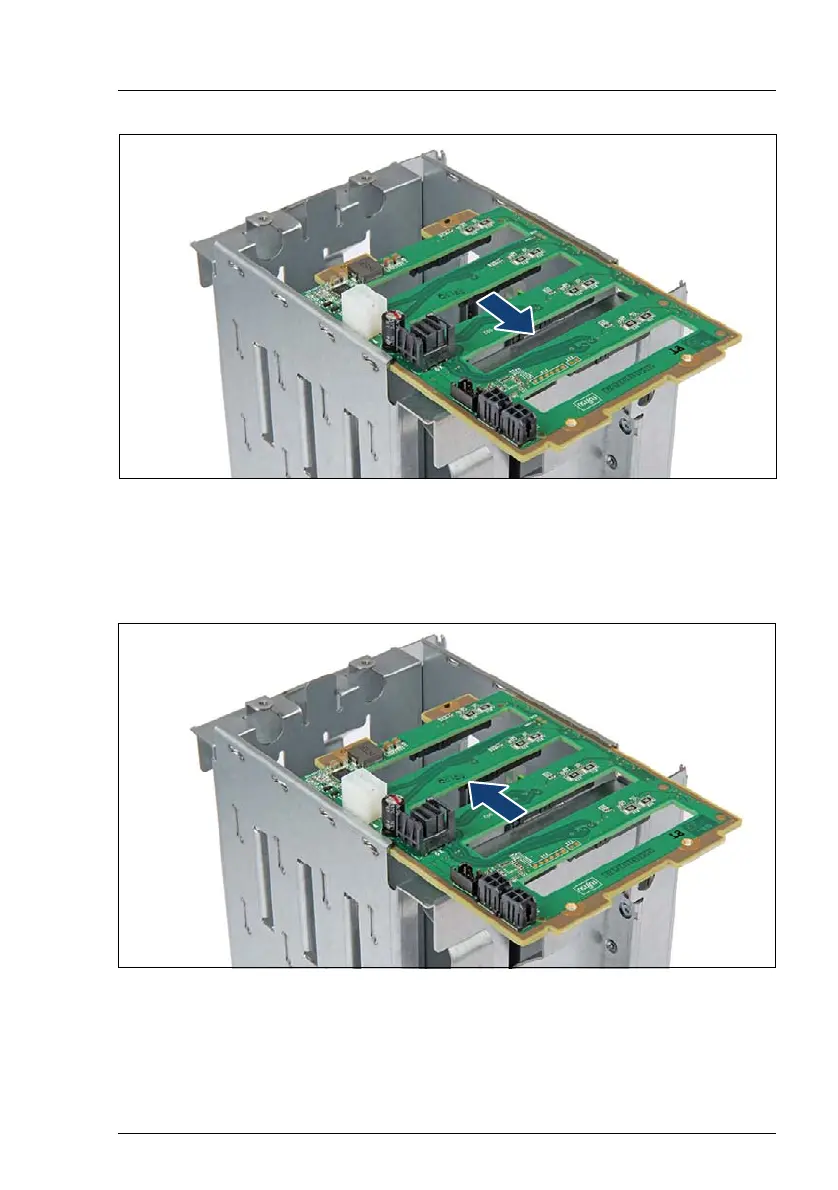

Figure 170: Removing the HDD backplane (C)
Ê Pull out the HDD backplane in the direction of the arrow.
7.5.7.3 Installing the new HDD backplane
Figure 171: Installing the HDD backplane (A)
Ê Fit the HDD backplane into the guides.
Ê Push the HDD backplane in the direction of the arrow.
