264 Upgrade and Maintenance Manual TX2550 M4
Hard disk drive (HDD) / solid state drive (SSD)

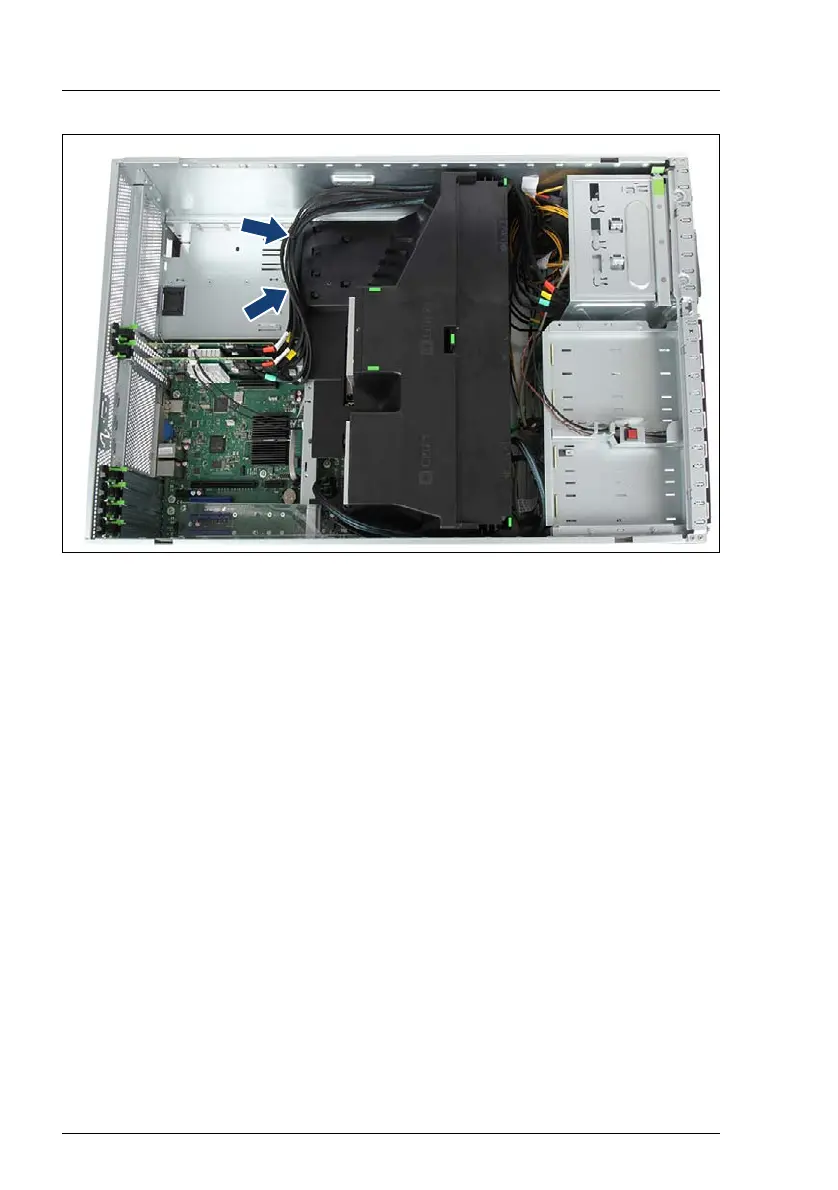

Figure 175: PCIe cable routing
Ê Lay the PCIe cables over the system air duct (see arrows).
Ê Install 2.5-inch PCIe SSDs SFF in the PCIe extension box, see section
"Installing 2.5-inch HDD/SSD modules" on page 179.
I The PCIe SSDs SFF are mounted in the same frames as the 2.5-inch
HDD/SSD modules.
I For the cable plan see chapter "Appendix B" on page 517.
7.6.1.3 Concluding steps
Ê "Reassembling" on page 68
Ê "Connecting the power cord" on page 81
Ê "Resuming BitLocker functionality" on page 127
Ê "Switching on the server" on page 82
