7.3.11.3 Installing a SAS backplane
Installing the SAS backplane

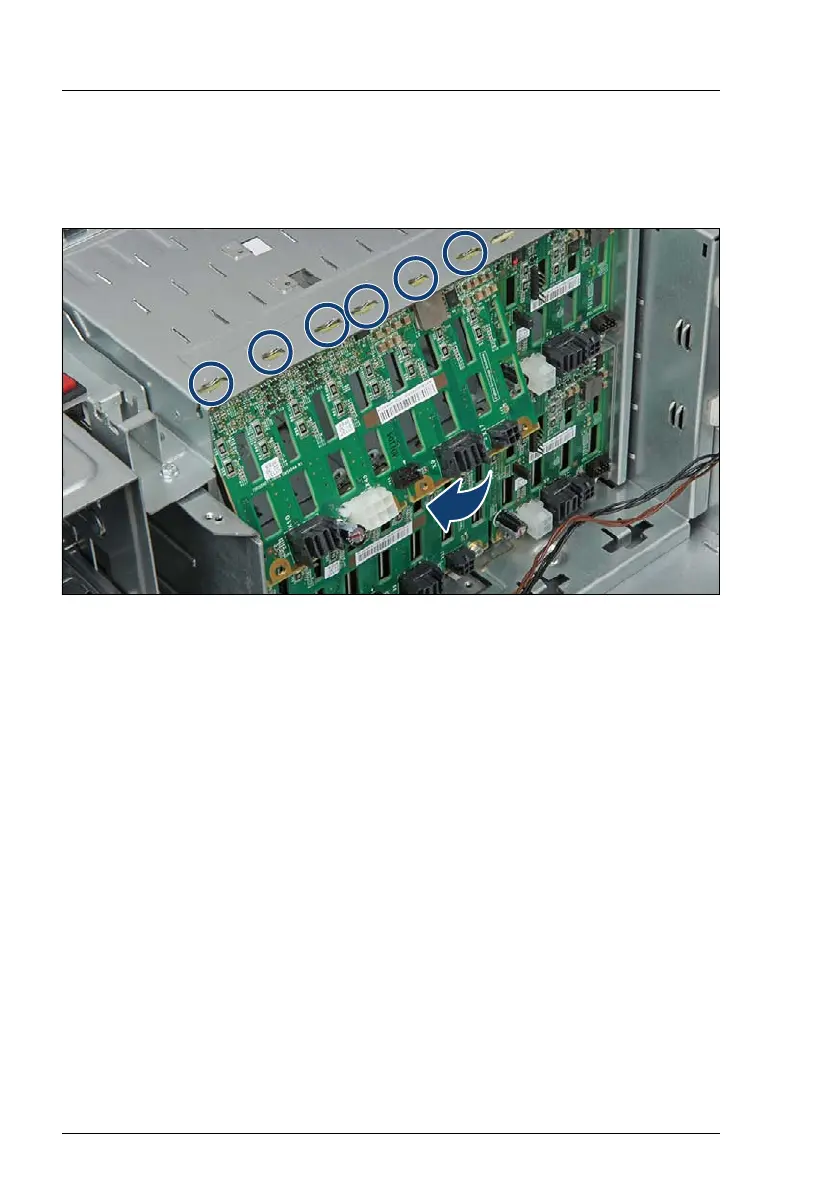

Figure 121: Installing a SAS backplane - example SAS backplane 3
Ê At a slight angle, fit the new SAS backplane into the corresponding recesses
in the HDD cage (see circles).
Ê Fold down the SAS backplane.
Ê Fasten the SAS backplane with four or two screws (see figure 119).
