Fujitsu PRIMERGY TX2550 M4 - Removing the 4 X 3.5-Inch HDD Front Panel

TX2550 M4 Upgrade and Maintenance Manual 235
Hard disk drive (HDD) / solid state drive (SSD)
7.4.10.3 Removing the 4x 3.5-inch HDD front panel

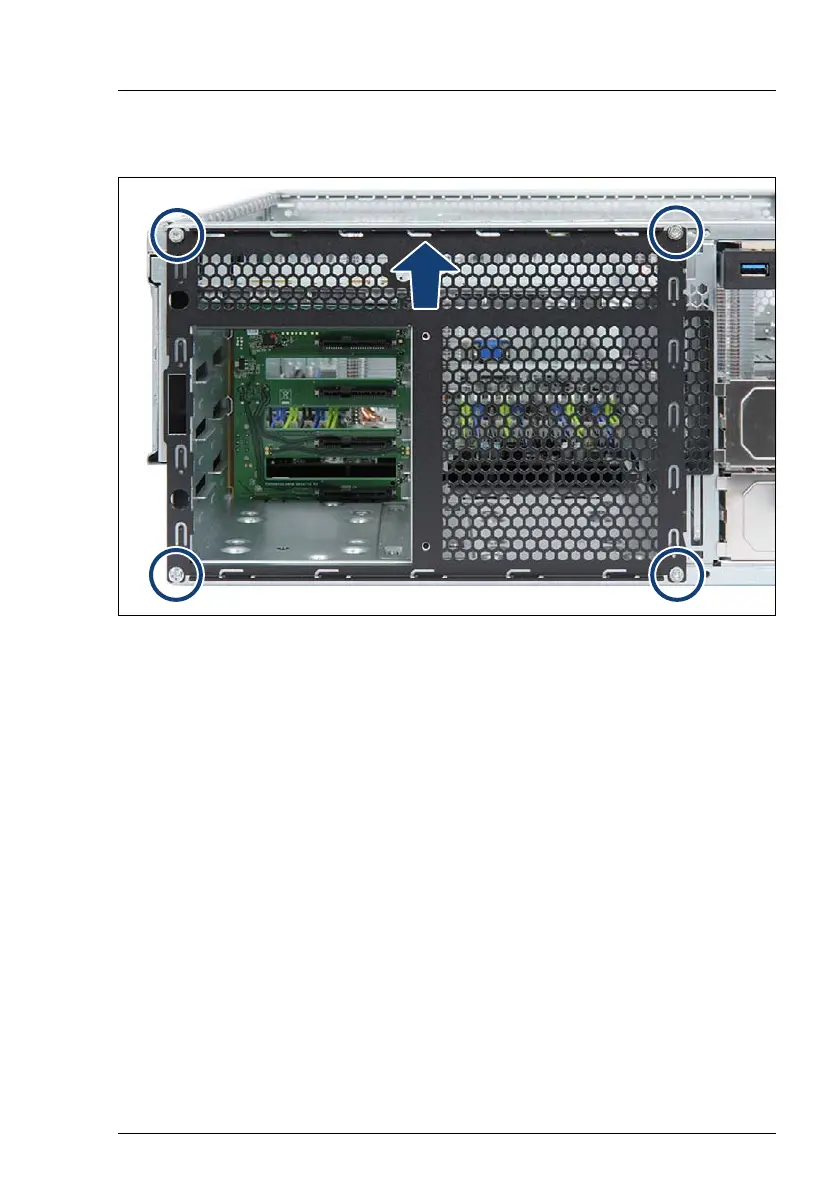

Figure 150: Removing the 4x 3.5-inch HDD front panel
Ê Remove four screws from the 4x 3.5-inch HDD front panel (see circles).
Ê Pull up the 4x 3.5-inch HDD front panel to disengage it from the chassis (see
arrow).
Ê Remove the 4x 3.5-inch HDD front panel.
