Fujitsu PRIMERGY TX2550 M4 - Cabling the 8 X 2.5-Inch HDD;SSD Extension Box

TX2550 M4 Upgrade and Maintenance Manual 245
Hard disk drive (HDD) / solid state drive (SSD)
7.5.2.5 Cabling the 8x 2.5-inch HDD/SSD extension box

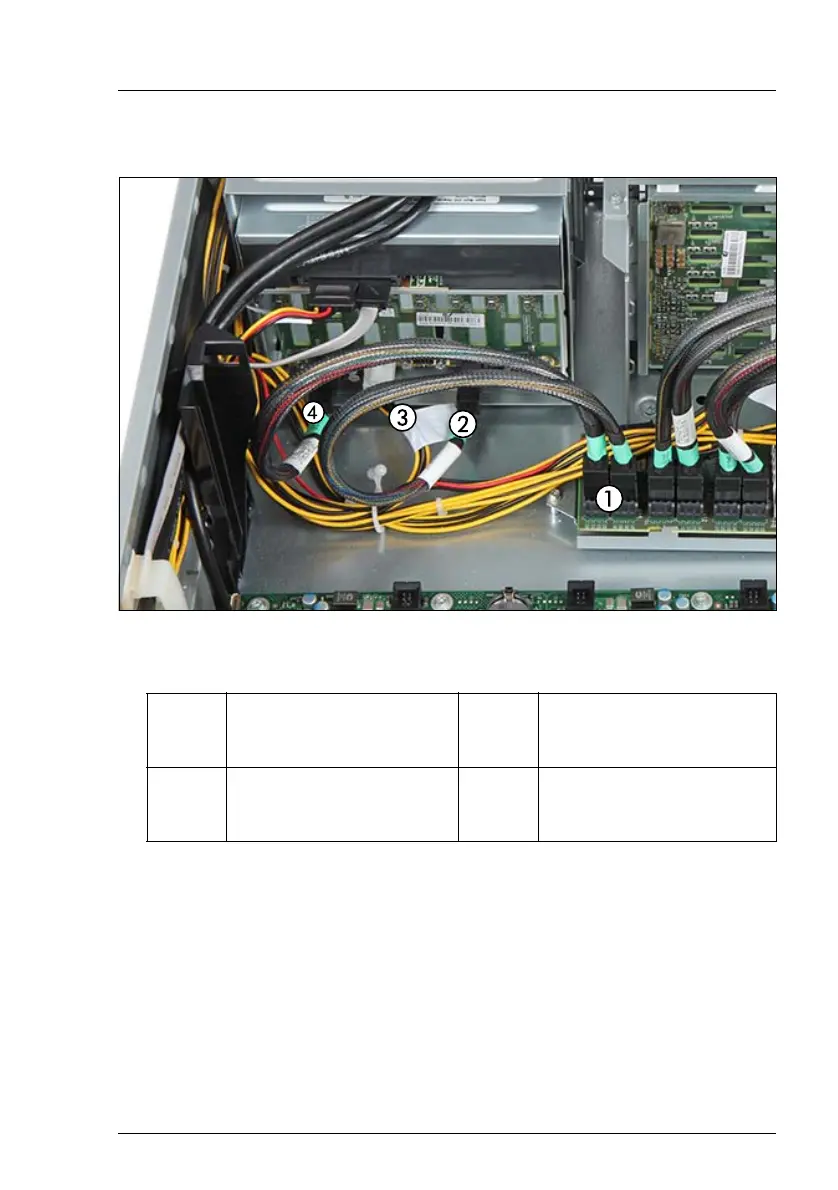

Figure 159: Connecting the 8x 2.5-inch HDD/SSD extension box
Ê Connect the following cables:
Ê Connect the power cable C6 to the connector "PWR3" on the system
board.
Ê If applicable, connect the OOB cable, see section "Replacing the OOB
cable" on page 488.
I For the cable plan see chapter "Appendix B" on page 517.
1 SAS cable C11 on SAS
expander board connectors
X14/X15
3 Power cable C6 on
backplane connector X40
2/4 SAS cable C11 on
backplane connector
X9/X10
