Accessible drives

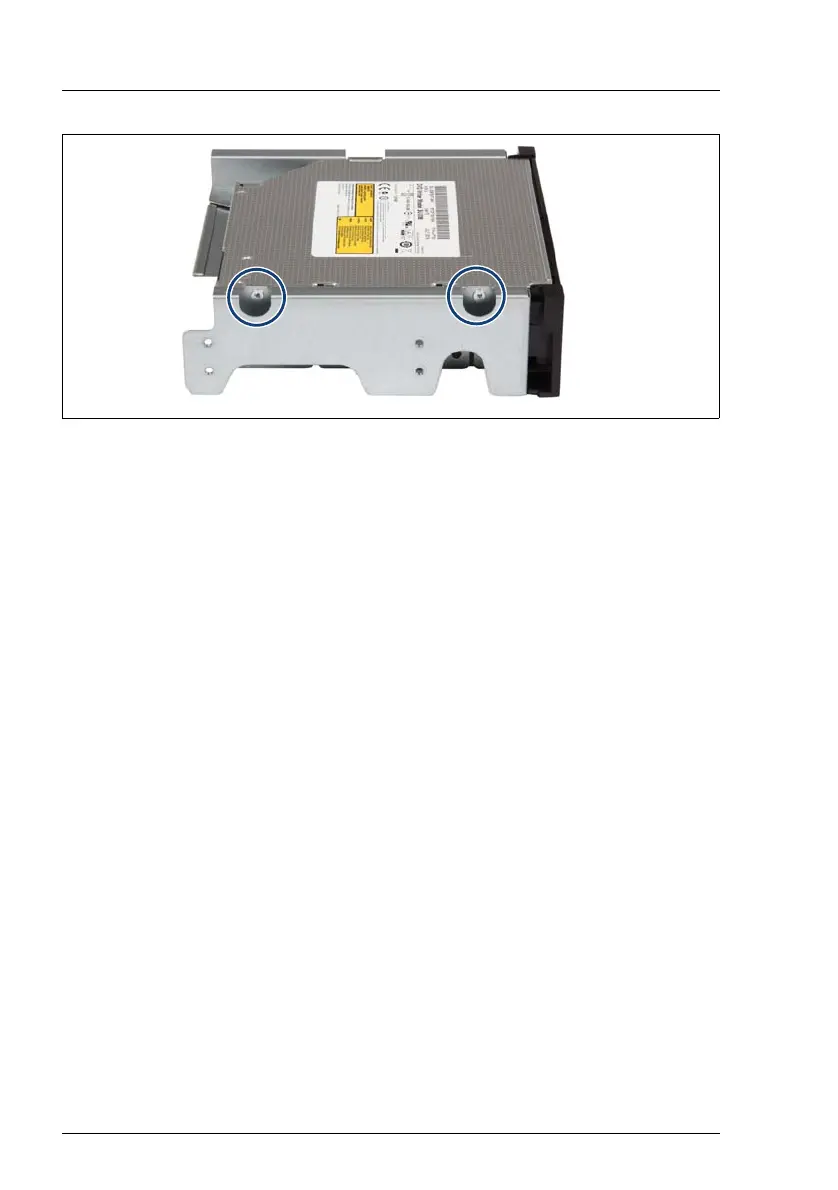

Figure 288: Installing the ultraslim ODD in the ultraslim ODD adapter (B)
Ê Secure the ultraslim ODD to the ultraslim ODD adapter with two screws (see
circles).
Ê Connect the power cable C23 and the SATA cable C11 to the ultraslim ODD
(see figure 283).
12.6.1.3 Installing the ultraslim ODD adapter
Ê Install the ultraslim ODD adapter, see section "Installing an accessible drive"
on page 379.
Ê Connect the SATA cable and the power cable, see "Example: Connecting
cables to the ODD" on page 381.
12.6.1.4 Concluding steps
Ê If applicable, install the expansion card, see section "Installing an expansion
card" on page 312.
Ê Install the fan bridge, see section "Handling fan bridges" on page 90
Ê If applicable, "Installing the riser module" on page 85
Ê "Installing the system air duct" on page 68
Ê "Reassembling" on page 68
Ê "Connecting the power cord" on page 81
Ê "Switching on the server" on page 82
