Hard disk drive (HDD) / solid state drive (SSD)
Ê Position the SAS expander board on the SAS expander board holder. Notice
the recesses and hooks (see circles).

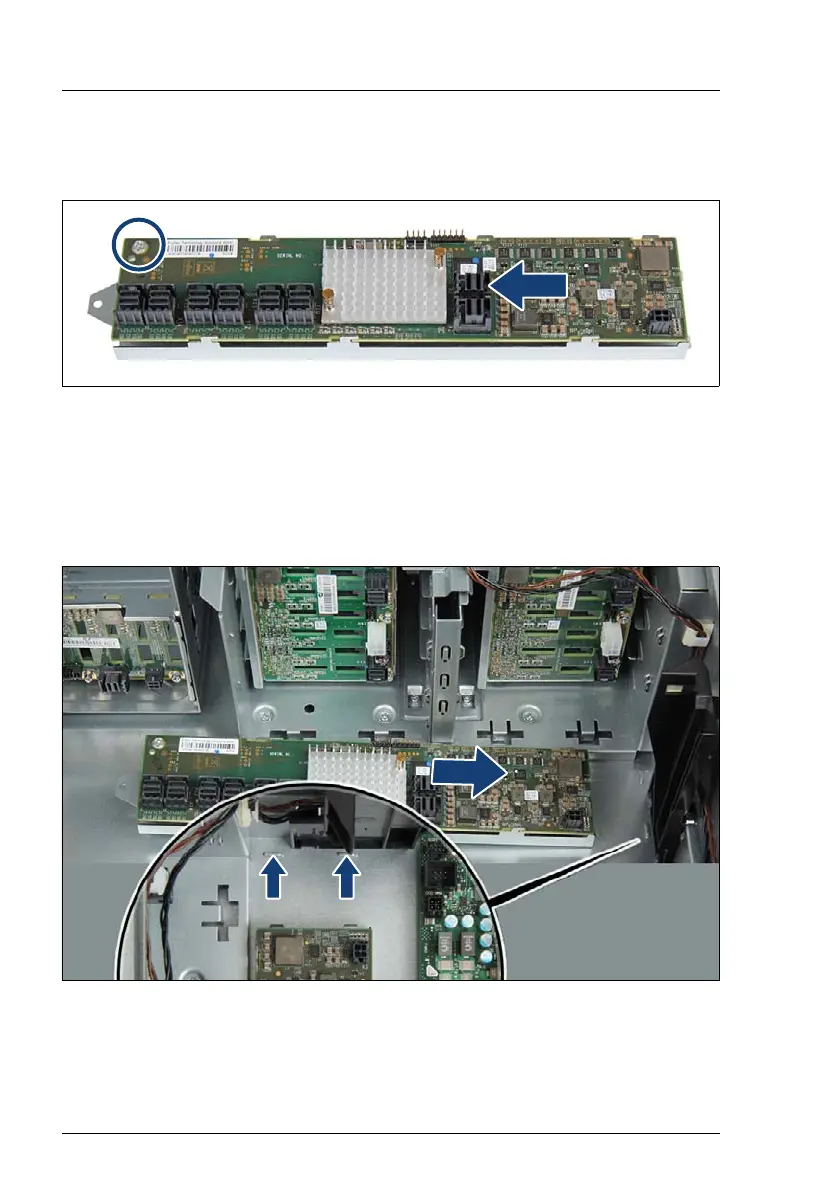

Figure 187: Installing the SAS expander board
Ê Push the SAS expander board in the direction of the arrow.
Ê Fasten the SAS expander board with one screw M3 x 4.5 mm (see circle).
7.8.1.3 Installing the SAS expander board holder
Figure 188: Installing the SAS expander board holder (A)
Ê Position the SAS expander board holder in the chassis.
