7.3.13.2 Removing the 8x 2.5-inch HDD front panel

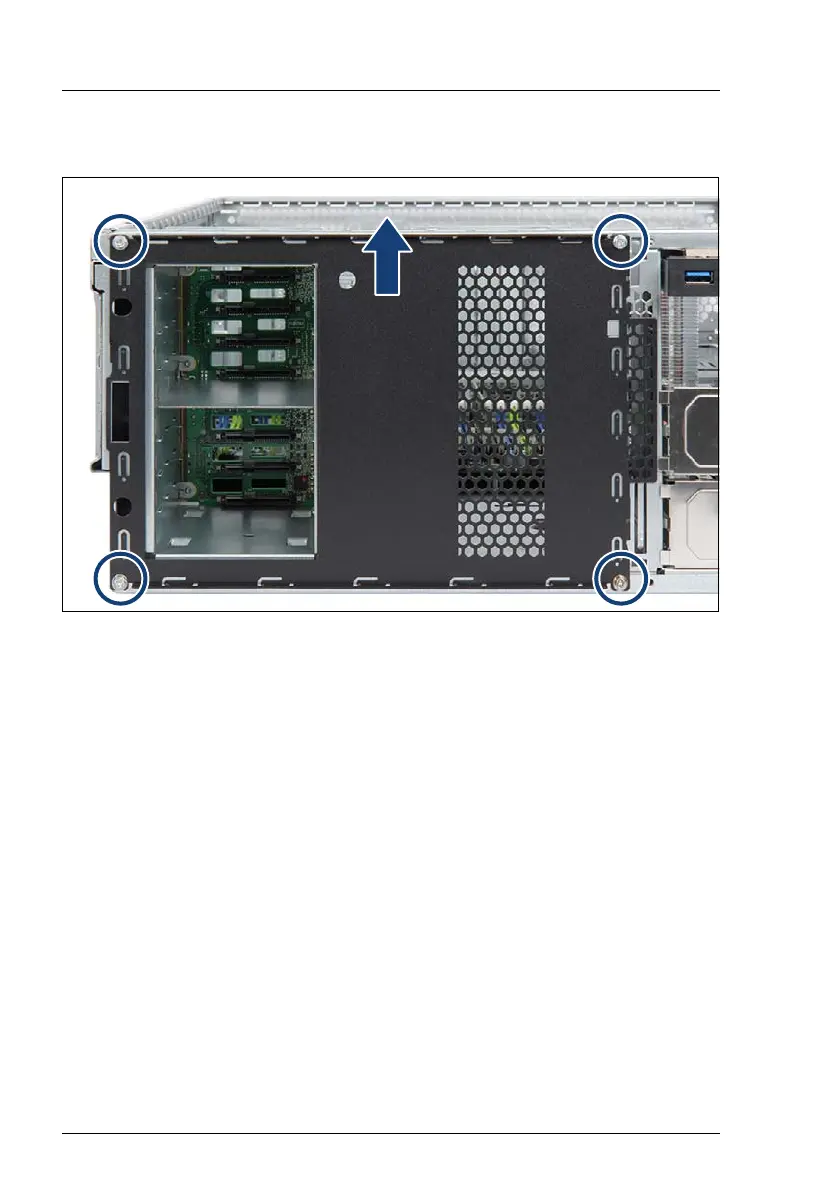

Figure 128: Removing the 8x 2.5-inch HDD front panel
Ê Remove four screws from the 8x 2.5-inch HDD front panel.
Ê Pull up the 8x 2.5-inch HDD front panel to disengage it from the chassis.
Ê Remove the 8x 2.5-inch HDD front panel.
7.3.13.3 Removing the 2.5-inch HDD bay top cover
Ê Remove the 2.5-inch HDD bay cover, see section "Removing the 2.5-inch
HDD bay top cover" on page 186.
7.3.13.4 Installing the second 2.5-inch HDD/SSD SAS backplane
Ê Install the second 2.5-inch HDD/SSD SAS backplane and the second HDD
cage, see section "Installing a 2.5-inch HDD/SSD SAS backplane" on
page 191.
