Fujitsu PRIMERGY TX2550 M4 - Removing the Top Cover

58 Upgrade and Maintenance Manual TX2550 M4
Basic hardware procedures
4.4.1.3 Removing the top cover

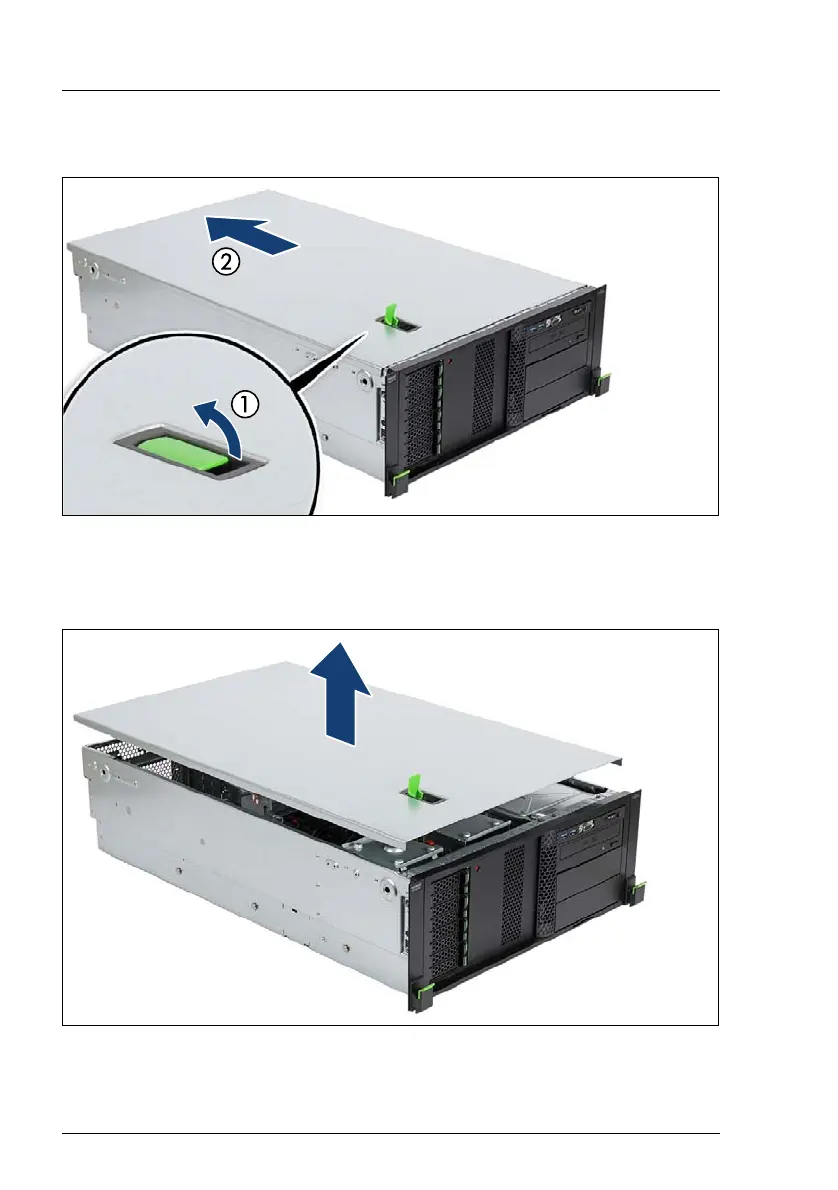

Figure 5: Removing the top cover (rack model)
Ê Open the locking lever (1). This will slide the top cover back disengaging the
locking mechanism (2).
Figure 6: Removing the top cover (rack model)
Ê Remove the top cover.
