218 Upgrade and Maintenance Manual TX2550 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.4.6 Installing 3.5-inch HDD modules
7.4.6.1 Preliminary steps
Ê When working on a floorstand model, open the HDD bay cover, see section
"Removing the drive covers" on page 64.
Ê Locate the correct drive bay, see section "3.5-inch HDD configurations" on
page 212.
7.4.6.2 Removing a 3.5-inch HDD dummy module

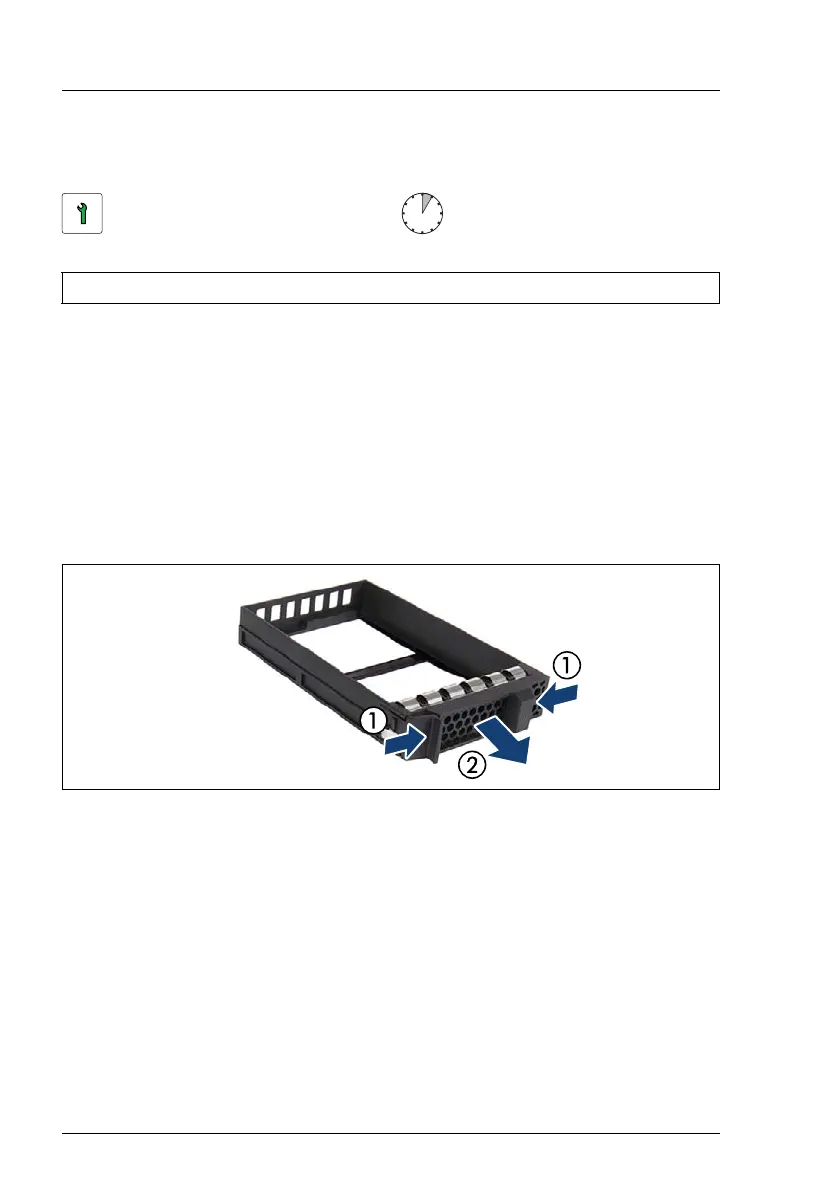

Figure 136: Removing a 3.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Keep the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
