Fujitsu PRIMERGY TX2550 M4 - Installing the Fan Bridge (Low Performance Variant)

TX2550 M4 Upgrade and Maintenance Manual 93
Basic hardware procedures
4.11.4 Installing the fan bridge (low performance variant)

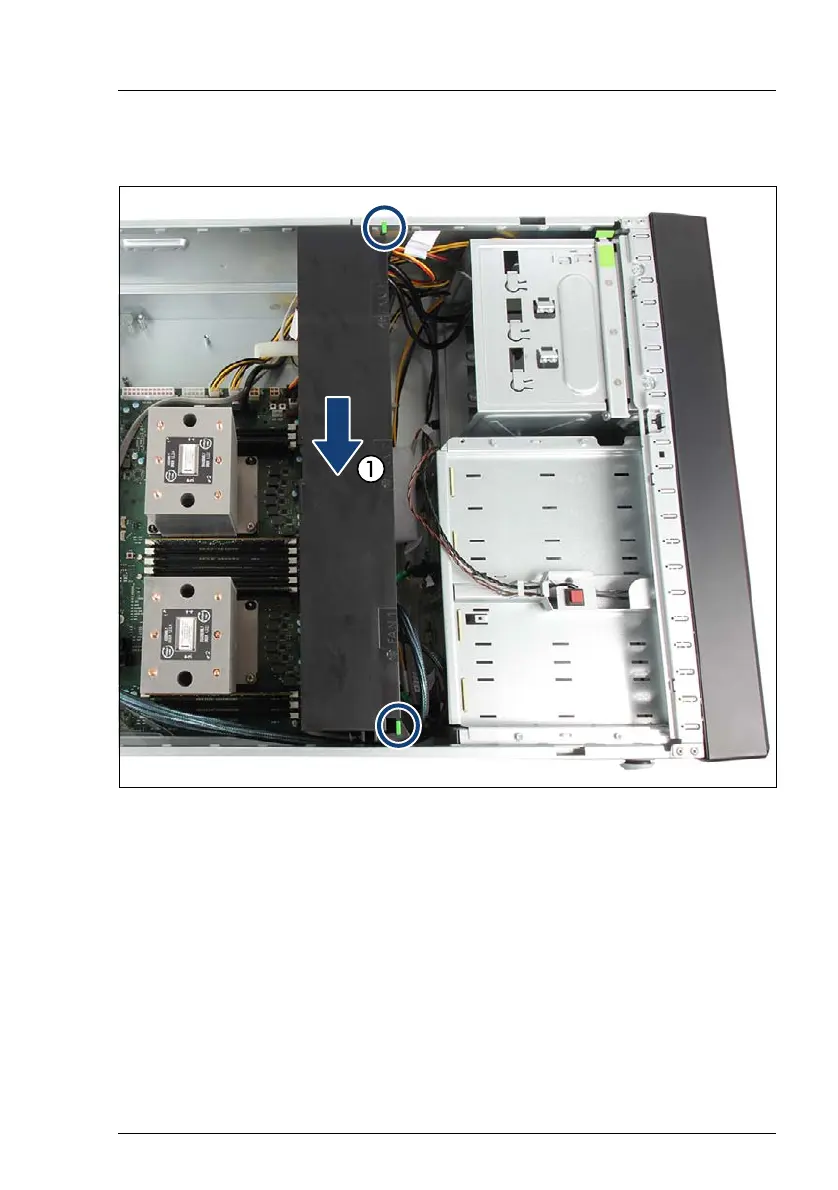

Figure 48: Installing the fan bridge (low performance variant)
Ê Insert the fan bridge into its two guides.
Ê Carefully push down the fan bridge (1) until the two locking tabs engage (see
circles).
