84 Upgrade and Maintenance Manual TX2550 M4
Basic hardware procedures
4.8.2 Riser modules
4.8.2.1 Removing the riser module

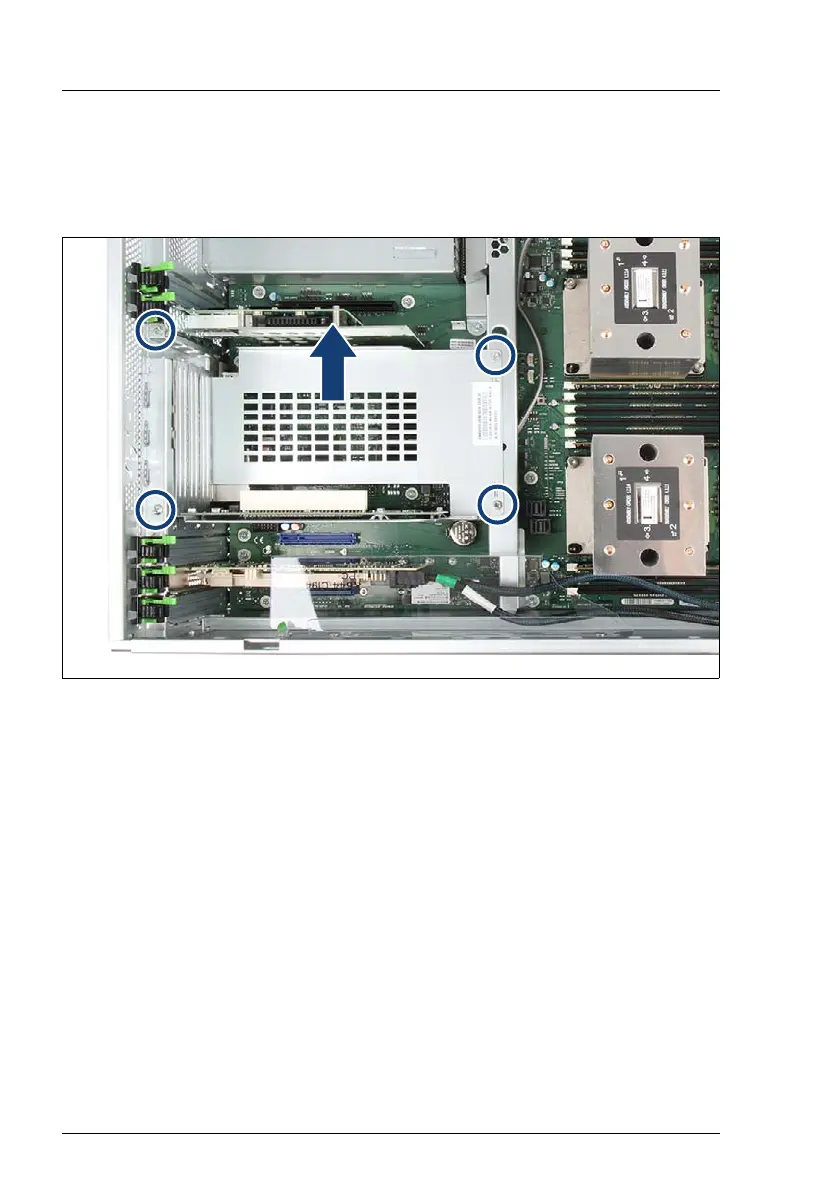

Figure 37: Removing the riser module
Ê Remove the four screws (see circles).
Ê If applicable, remove the slot cover lock.
Ê Carefully take out the riser module (see arrow).
