76 Upgrade and Maintenance Manual TX2550 M4
Basic hardware procedures
Ê Insert and push the ID card into its slot until it locks in place (see figure 16).
4.5.3.2 Installing the drive covers

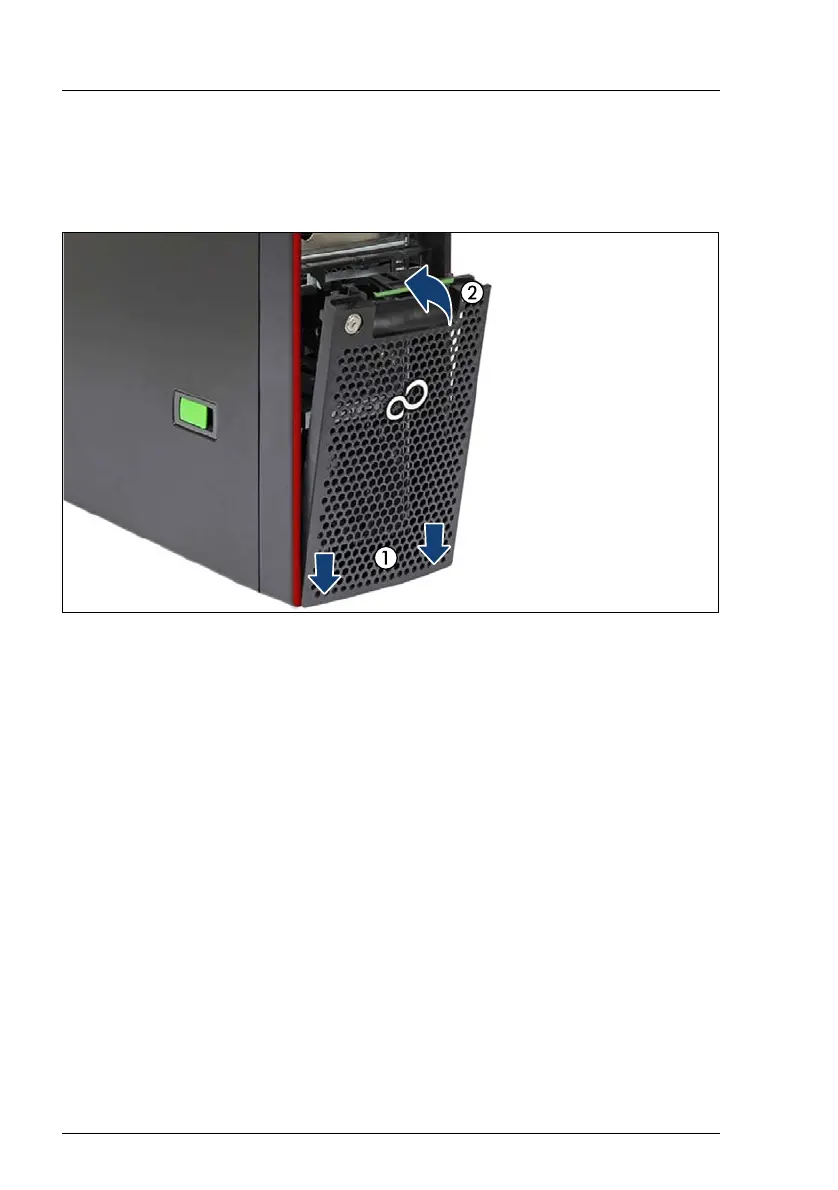

Figure 28: Installing the HDD bay cover
Ê Insert the HDD bay cover into the front cover as shown (1).
Ê Fold up the HDD bay cover until it locks in place (2).
