434 Upgrade and Maintenance Manual TX2550 M4
System board and components
Ê Install the hegaxon stand-off on the right position depending on the
length of the M.2 SSD.

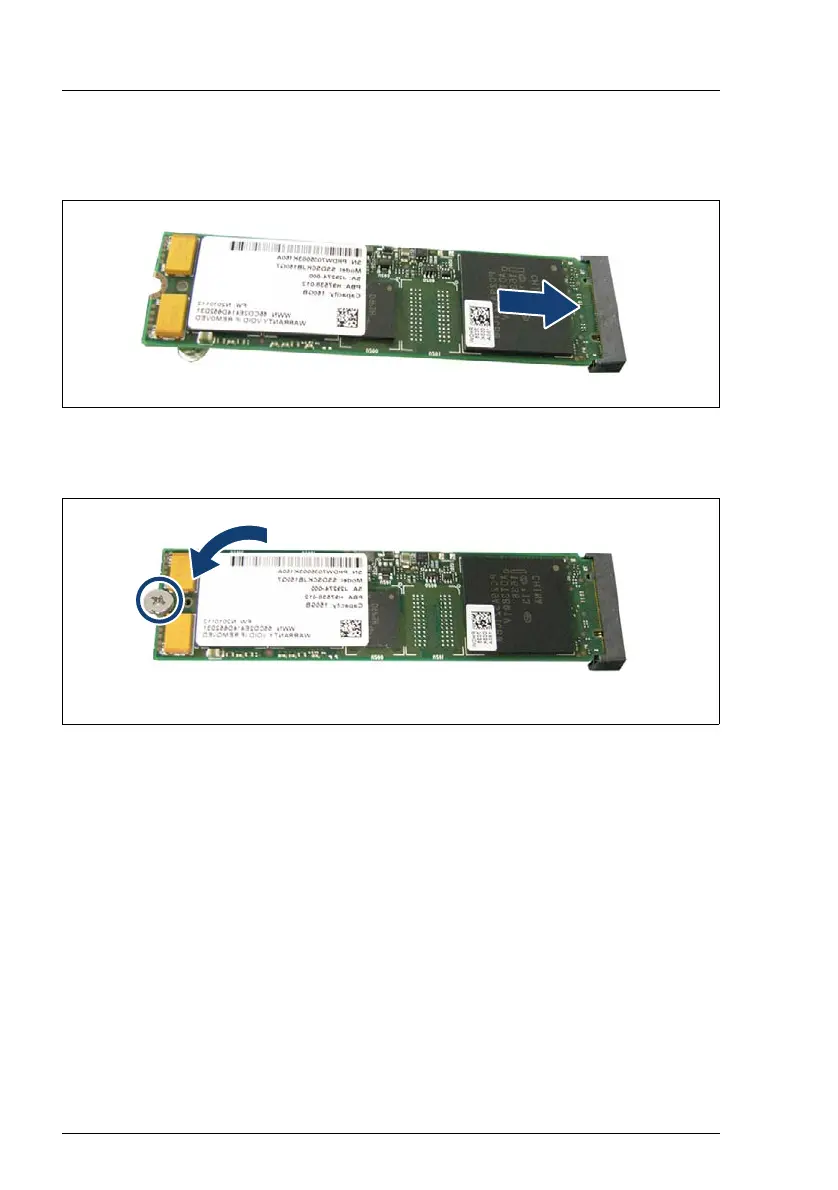

Figure 309: Installing the M.2 SSD
Ê With the label facing up, insert the M.2 SSD into the M.2 slot.
Figure 310: Fastening the M.2 SSD
Ê Fasten the M.2 SSD with the screw (see circle).
14.5.1.3 Concluding steps
Ê If applicable, "Installing an expansion card" on page 312
Ê "Installing the crossbar" on page 89
Ê If applicable, "Installing the riser module" on page 85
Ê "Installing the PCI air duct" on page 87
Ê If applicable, install the riser module, see section "Installing the riser module"
on page 85.
Ê "Installing the system air duct" on page 68
