Fujitsu PRIMERGY TX2550 M4 - Installing an Accessible Drive

TX2550 M4 Upgrade and Maintenance Manual 379
Accessible drives
12.2.4 Installing an accessible drive

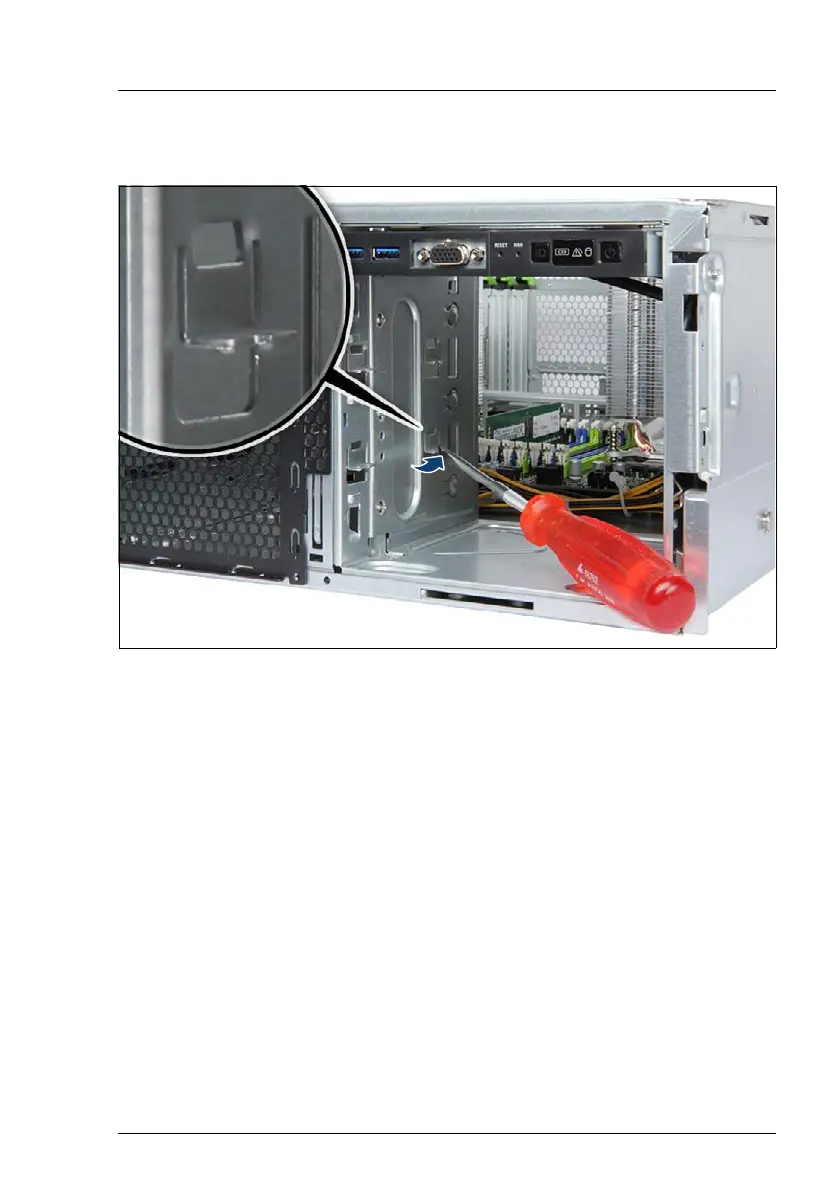

Figure 274: Mounting brackets in right position
Ê Ensure that the four mounting brackets in the desired accessible drive bay
have not been bent inwards as for installing HDD extension boxes. If
applicable, bend the mounting brackets back to the original positions (see
close-up).
Ê Open the locking bar, see section "Opening the accessible drive locking bar"
on page 94.
