380 Upgrade and Maintenance Manual TX2550 M4

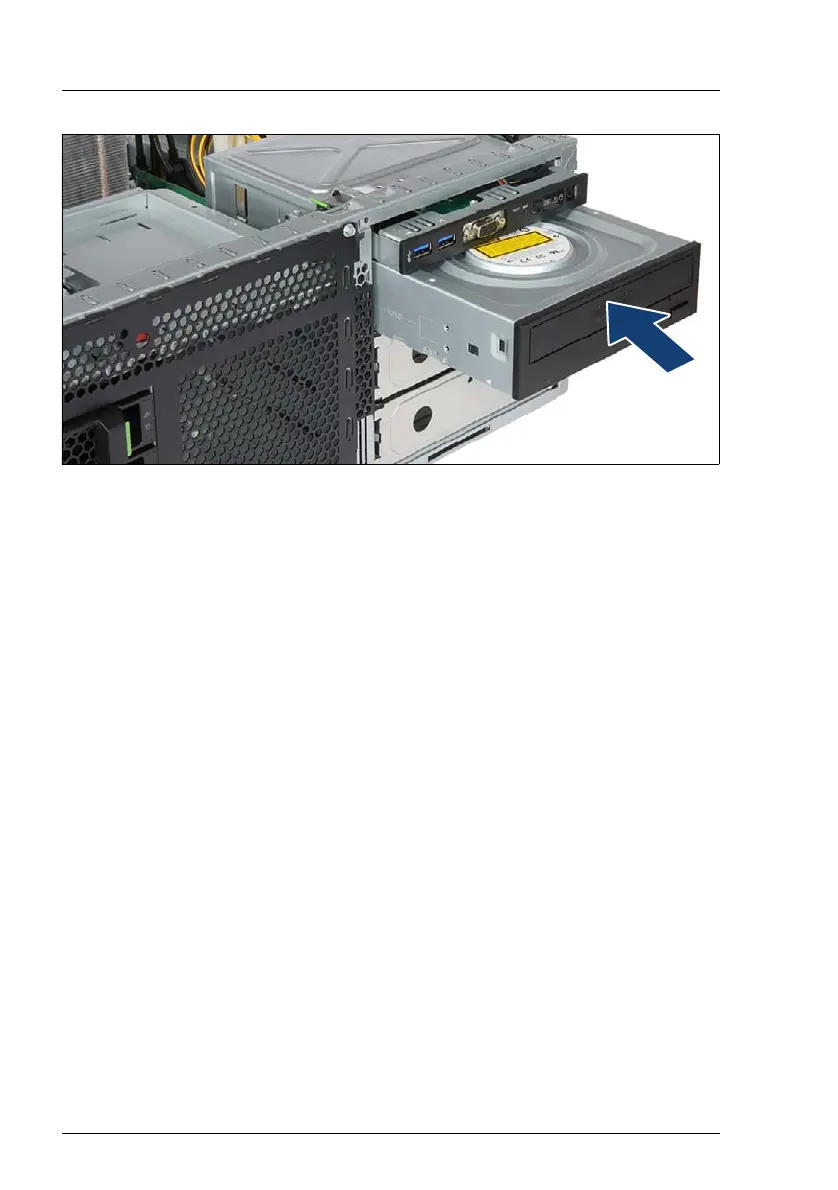

Figure 275: Inserting the accessible drive
Ê Insert the ODD into its installation bay and carefully push in until it lines up
with the front panel.
V CAUTION!
For installing an LTO drive: ensure that the power cables routed
behind the accessible drive cage are not trapped when pushing the
LTO drive in its bay.
Ê Close the locking bar, see section "Closing the accessible drive locking bar"
on page 96.
