Fujitsu PRIMERGY TX2550 M4 - Installing a Non-Hot-Plug HDD;SSD; Installing the Non-Hot-Plug Cage

TX2550 M4 Upgrade and Maintenance Manual 271
Hard disk drive (HDD) / solid state drive (SSD)
7.7.1.4 Installing a non-hot-plug HDD/SSD

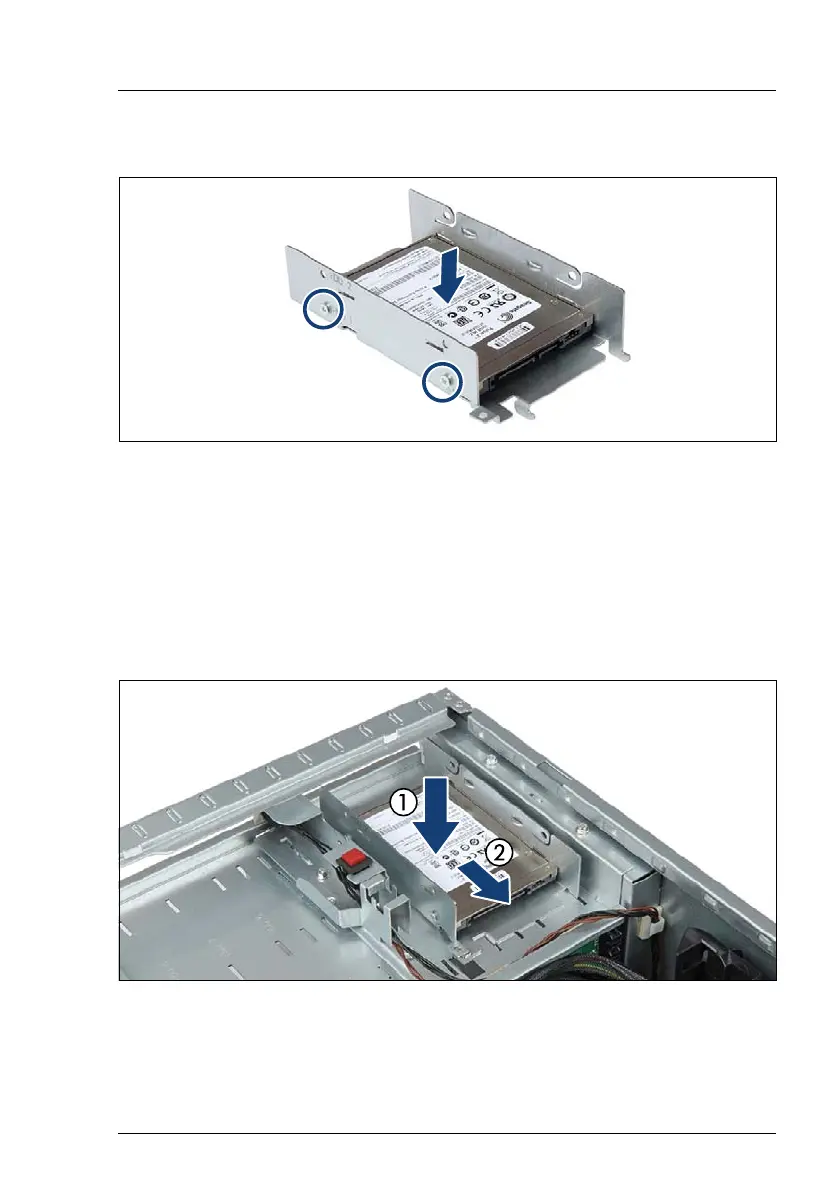

Figure 181: Installing the non-hot-plug HDD/SSD
Ê Place the non-hot-plug HDD/SSD 1 in the non-hot-plug cage.
Ê Fasten the non-hot-plug HDD/SSD 1 with the four screws (two screws on
each side, circles show one side).
Ê If applicable, install the non-hot-plug HDD/SSD 2 in the same way.
7.7.1.5 Installing the non-hot-plug cage
Figure 182: Installing the non-hot-plug cage (A)
Ê Place the non-hot-plug cage onto the top cover (1).
Ê Slide the non-hot-plug cage in the direction of the arrow (2).
