Fujitsu PRIMERGY TX2550 M4 - Configuration with up to 32 Hdds;Ssds with HDD Extension Box

TX2550 M4 Upgrade and Maintenance Manual 175
Hard disk drive (HDD) / solid state drive (SSD)
7.3.5 Configuration with up to 32 HDDs/SSDs with HDD
extension box

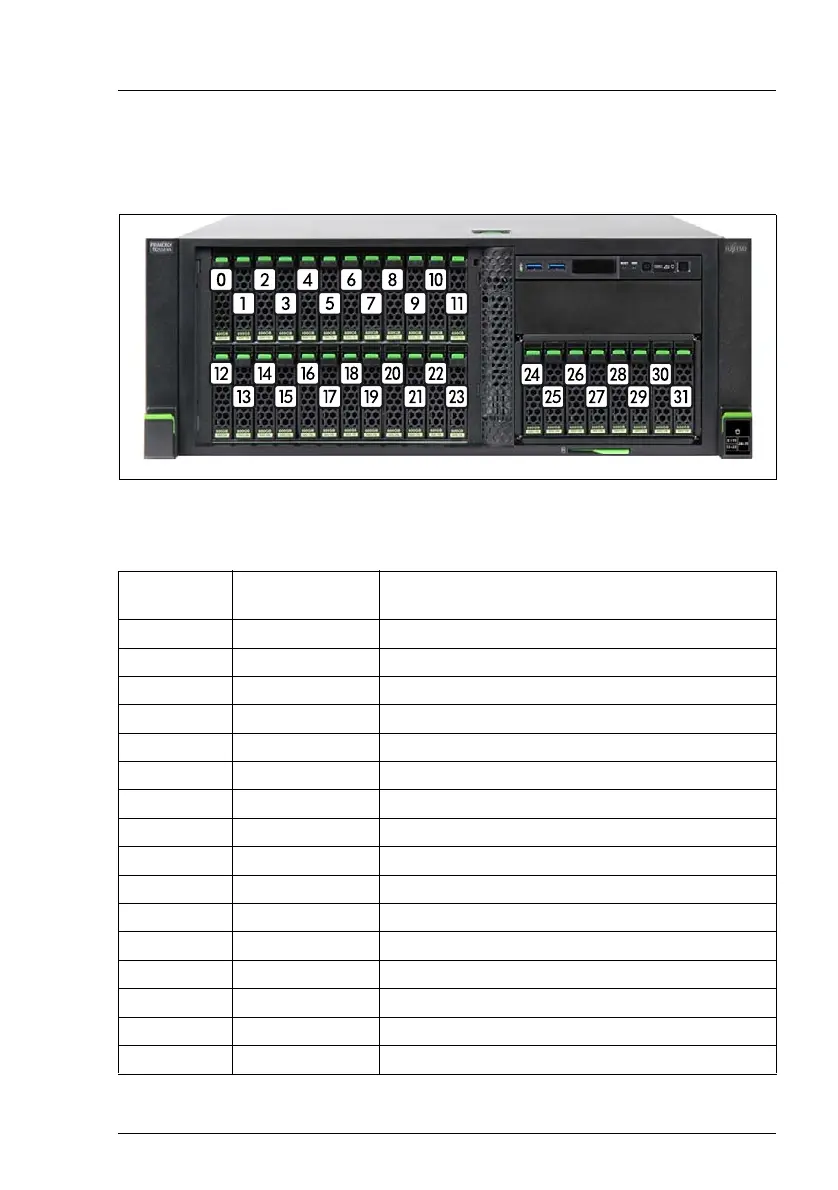

Figure 95: Configuration with up to 32 2.5-inch HDDs/SSDs with HDD extension box
With SAS expander board and one SAS controller
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
[0] 0 Vendor Product (1:0)
[1] 1 Vendor Product (1:1)
[2] 2 Vendor Product (1:2)
[3] 3 Vendor Product (1:3)
[4] 4 Vendor Product (1:4)
[5] 5 Vendor Product (1:5)
[6] 6 Vendor Product (1:6)
[7] 7 Vendor Product (1:7)
[8] 8 Vendor Product (1:8)
[9] 9 Vendor Product (1:9)
[10] 10 Vendor Product (1:10)
[11] 11 Vendor Product (1:11)
[12] 12 Vendor Product (1:12)
[13] 13 Vendor Product (1:13)
[14] 14 Vendor Product (1:14)
[15] 15 Vendor Product (1:15)
