TX2550 M4 Upgrade and Maintenance Manual 443
System board and components

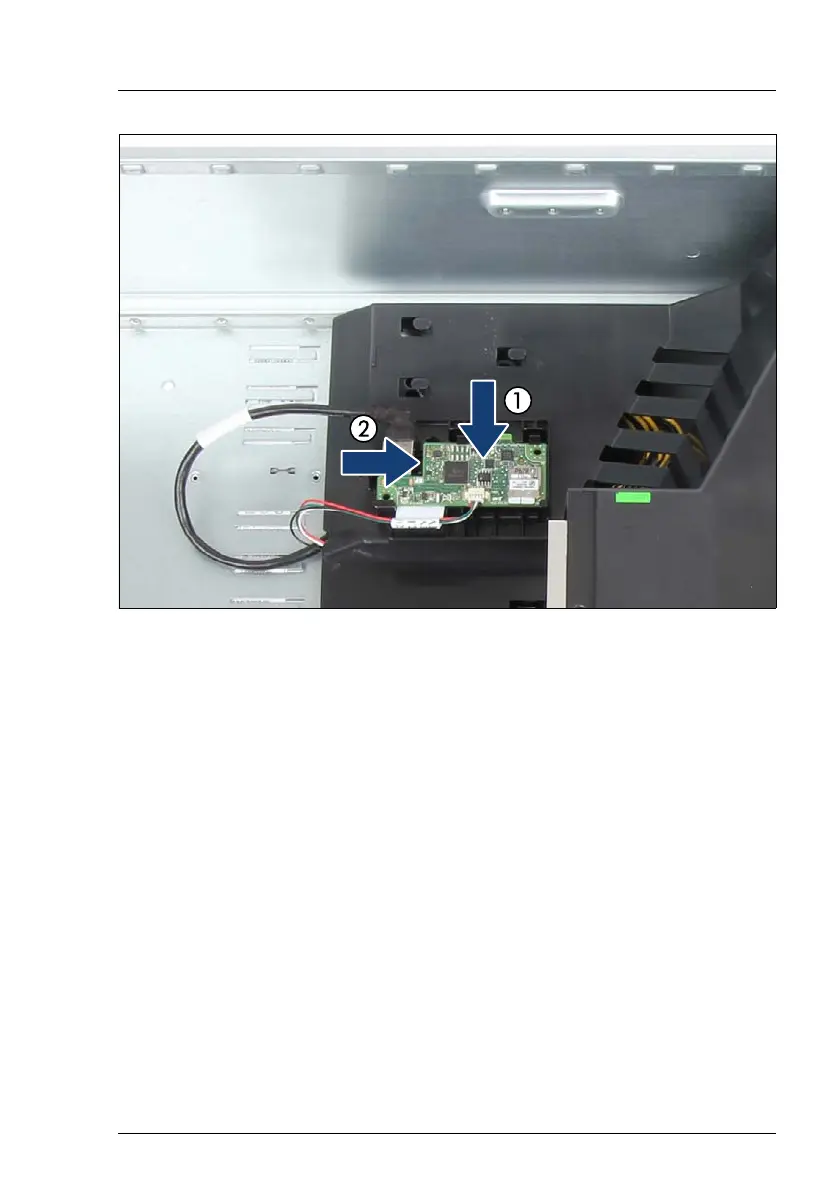

Figure 318: Installing the Dual microSD 64GB Enterprise onto the system air duct
Ê Place the holder on the shoulder screw caps of the system air duct (1).
Ê Push the holder in direction of the arrow until it engages (2).
14.6.1.3 Concluding steps
Ê "Reassembling" on page 68
Ê "Connecting the power cord" on page 81
Ê "Switching on the server" on page 82
