428 Upgrade and Maintenance Manual TX2550 M4
System board and components

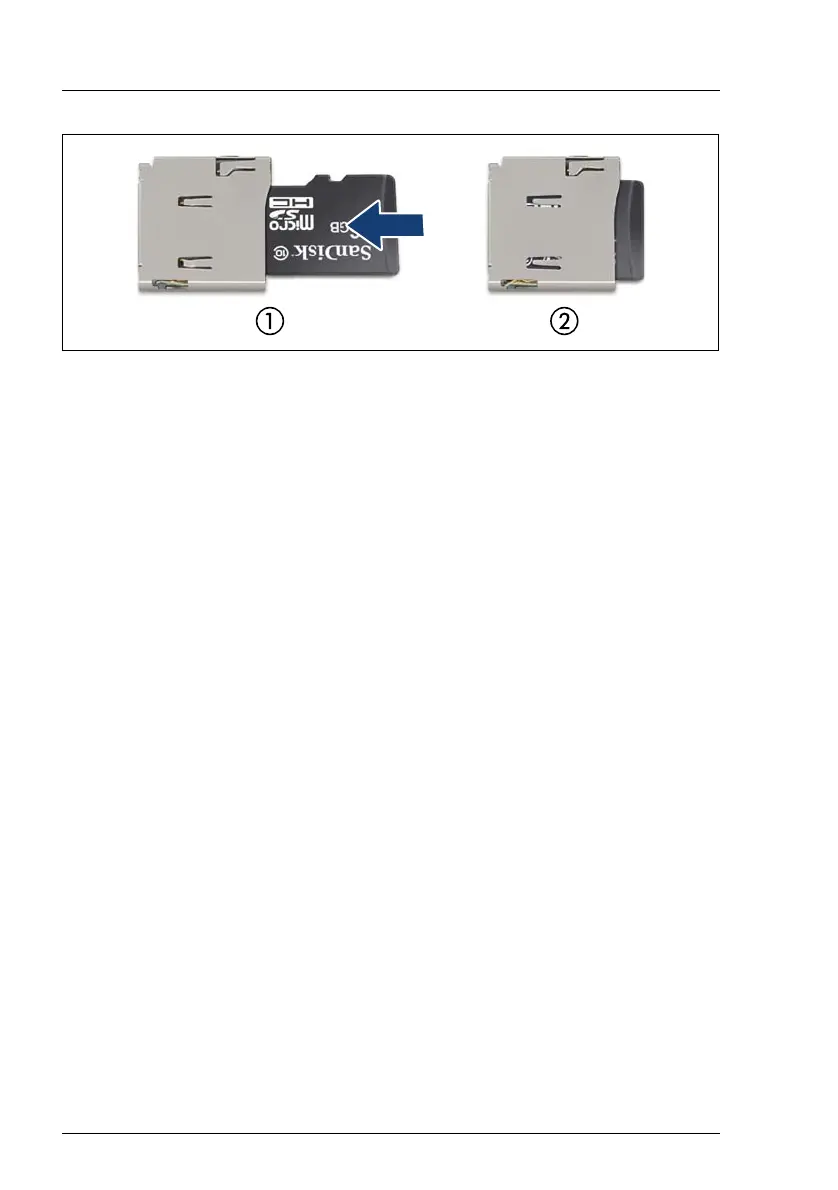

Figure 305: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 497.
14.4.1.3 Concluding steps
Ê If applicable, install the riser module, see section "Installing the riser module"
on page 85.
Ê "Reassembling" on page 68
Ê "Connecting the power cord" on page 81
Ê "Switching on the server" on page 82
