TX2550 M4
Upgrade and Maintenance Manual
349
Main memory
10.1.2
Modes of operation

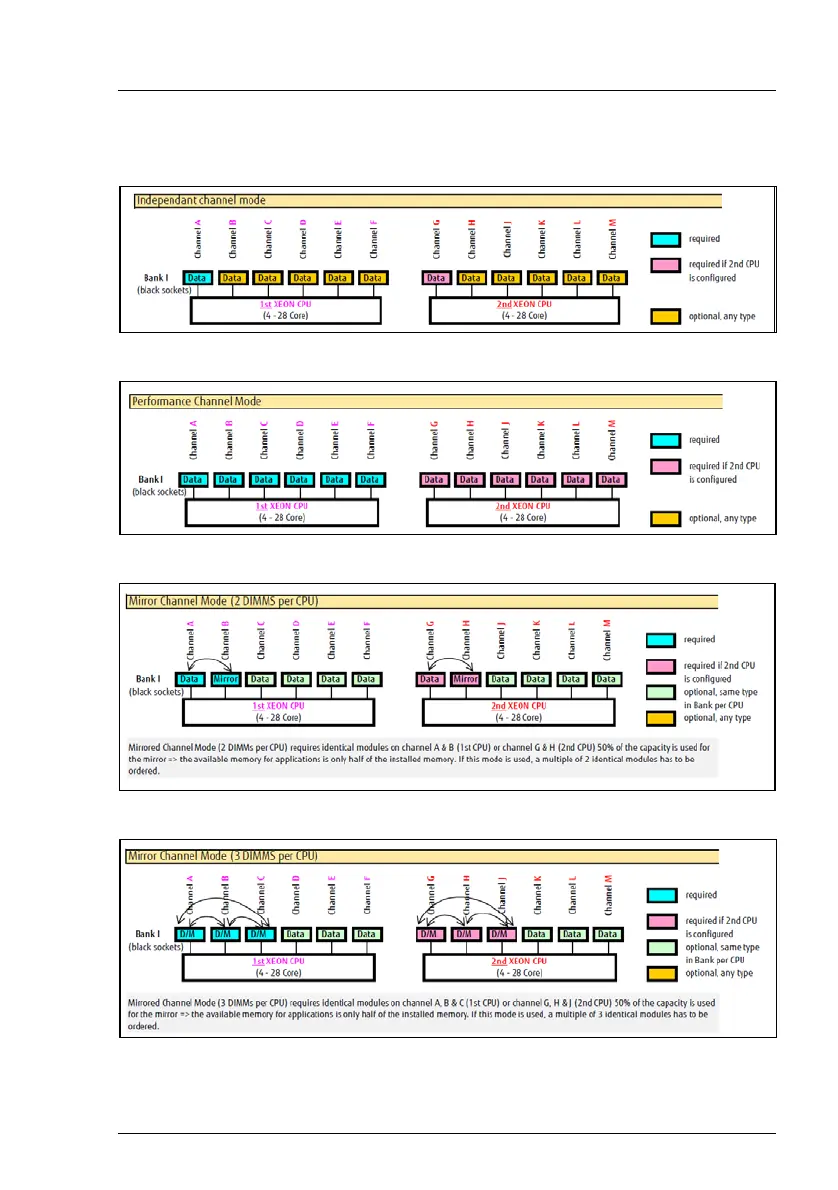

Figure 245: Independent
channel mode
Figure 246: P
erformance c
hannel mode
Figure 247: Mirror channel mode (2 DIMMS per CPU)
Figure 248: Mirror channel mode (3 DIMMS per CPU)
348
350
