7.6.2.3 Installing the new PCIe SSD backplane

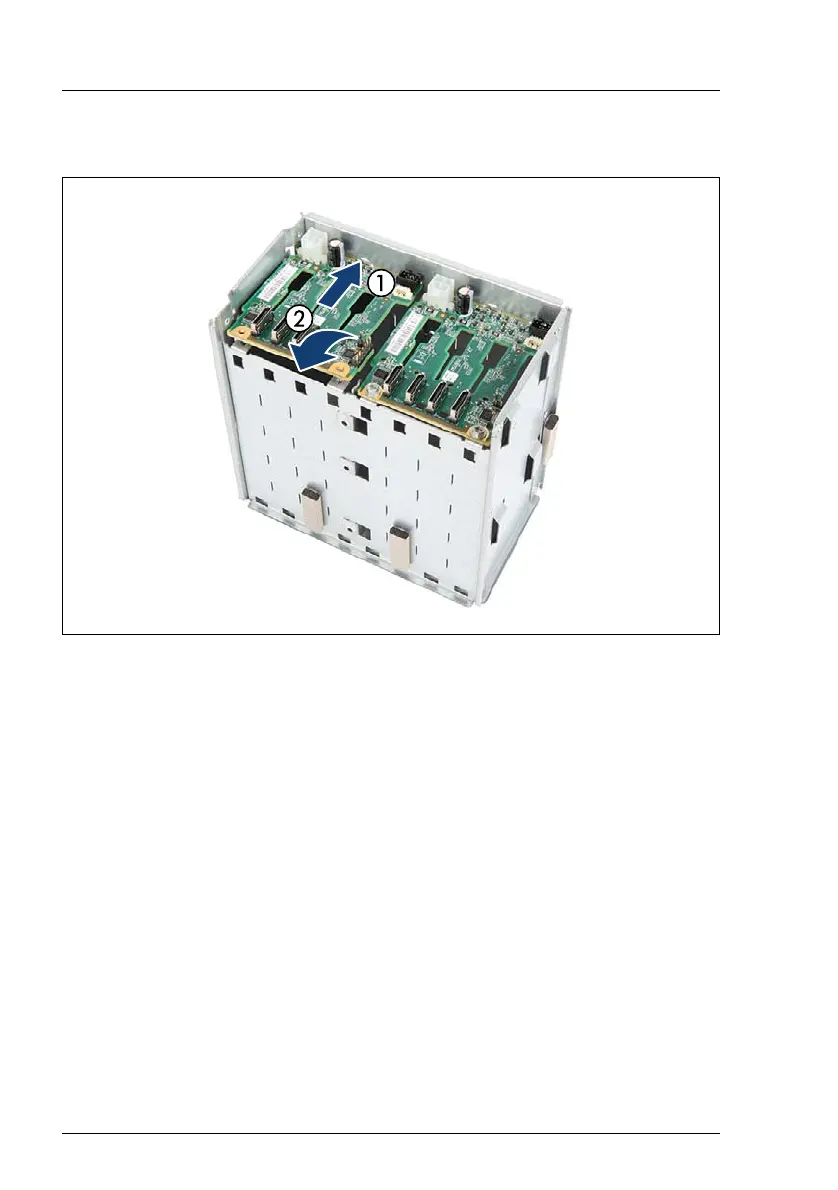

Figure 178: Installing the PCIe SSD backplane
Ê At a slight angle, fit the PCIe SSD backplane into the three recesses in the
PCIe SSD extension box (1).
Ê Fold down the PCIe SSD backplane (2).
Ê Fasten the PCIe SSD backplane with two screws (see figure 176).
Ê Install the 8x 2.5-inch PCIe SSD extension box, see section "Installing the
8x 2.5-inch HDD/SSD extension box" on page 242.
7.6.2.4 Concluding steps
Ê If applicable, install the fan bridge, see section "Handling fan bridges" on
page 90.
Ê "Installing the system air duct" on page 68.
Ê "Reassembling" on page 68
