286 Upgrade and Maintenance Manual TX2550 M4
8.1 Basic information
There are two different fan bridges available:
– fan bridge for the low performance variant, only the whole fan bridge can be
removed or changed.
– fan bridge for the high performance variant, equipped with three fan
modules. Each fan module can be changed.
8.1.1 Numbering of the fan modules (high performance
variant)

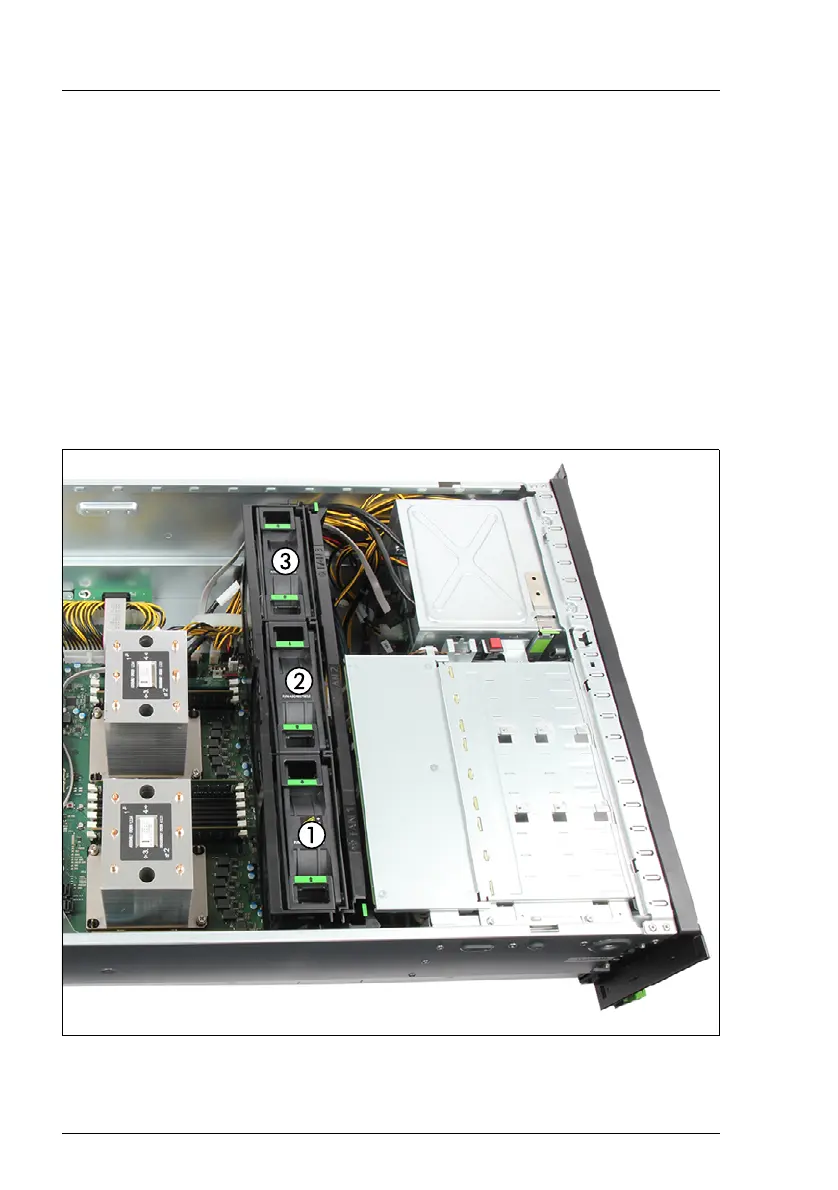

Figure 194: Numbering of the fan modules
