350 Upgrade and Maintenance Manual TX2550 M4

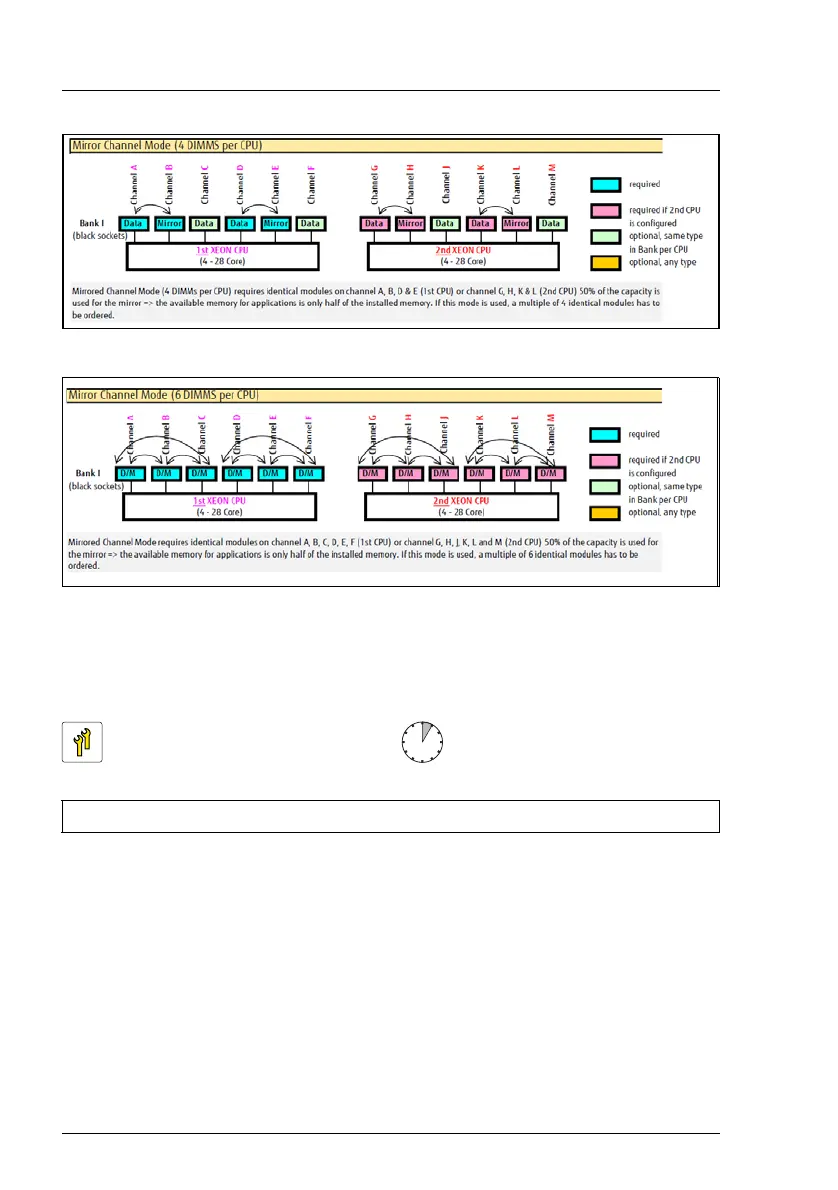

Figure 249: Mirror channel mode (4 DIMMS per CPU)
Figure 250: Mirror channel mode (6 DIMMS per CPU)
10.2 Installing memory modules
10.2.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 105
Ê "Shutting down the server" on page 52
Ê "Disconnecting the power cord" on page 53
Ê "Getting access to the component" on page 54
Ê "Removing the system air duct" on page 67
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
