TX2550 M4 Upgrade and Maintenance Manual 195
Hard disk drive (HDD) / solid state drive (SSD)
7.3.10.6 Connecting cables
Example: 8x 2.5-inch HDD/SSD configuration

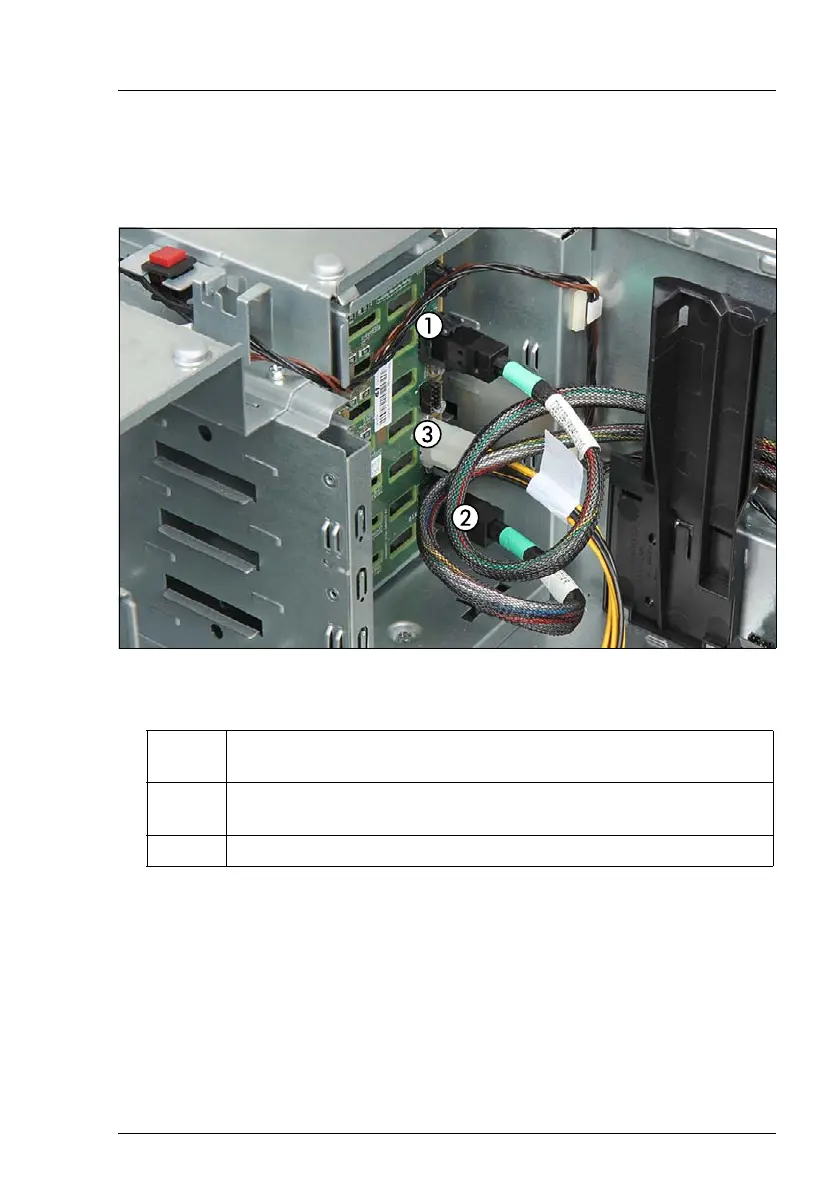

Figure 114: Example: Connecting cables for a 8x 2.5-inch HDD/SSD configuration
Ê Connect the cables:
I For more information about connecting SAS cables to the
corresponding controller see section "Expansion cards and backup
units" on page 291.
Ê If applicable, connect the OOB cable, see chapter "Replacing the OOB
cable" on page 488.
I For the cable plan see chapter "Appendix B" on page 517.
1
SAS cable C10 from the connector MLC2 on the SAS controller to
backplane connector X9
2
SAS cable C10 from the connector MLC1 on the SAS controller to
backplane connector X10
3
Power cables C6 on backplane connectors X40
